Custom Profile Butt Hinge
Caldwell’s Custom Profile Butt Hinges are fully assembled and profile specific for casement applications.
Custom Profile Adjustable Butt Hinge
Caldwell’s Custom Profile Adjustable Butt Hinges are fully assembled, profile specific and field adjustable for casement applications.
Also available for euro-groove profiles.
Product features
- Proprietary Brushing Design
- Self Lubricating: Smooth Operation
- High Tensile Strength
- Stainless Steel Pin
- Coated to Prevent Galvanic Reaction

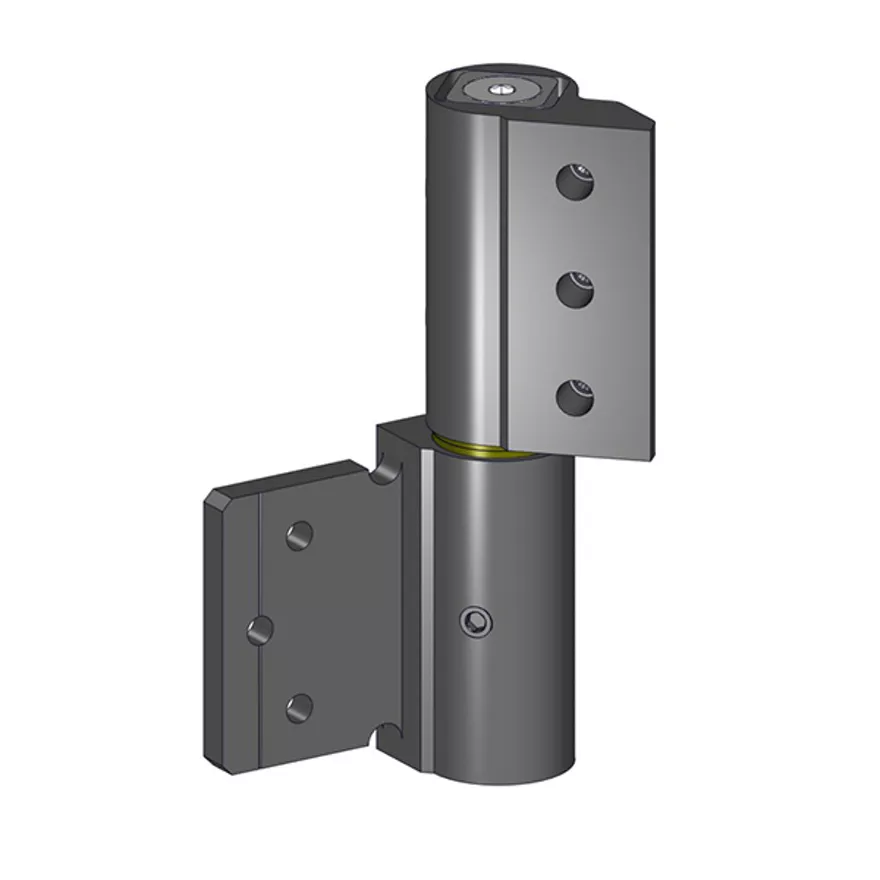

Custom Profile Adjustable Butt Hinge
Custom Profile Adjustable Butt Hinge

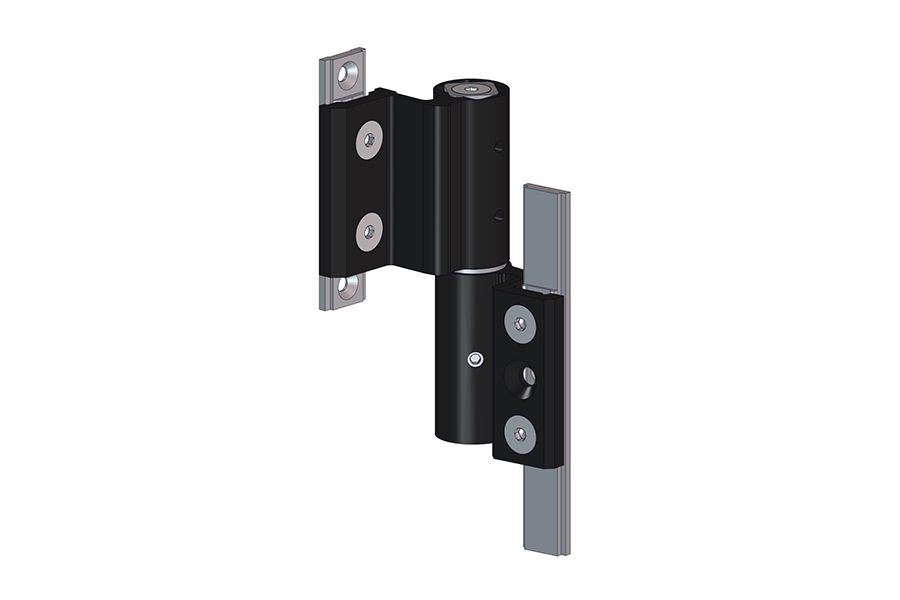

Custom Profile Adjustable Butt Hinge for euro-groove profile

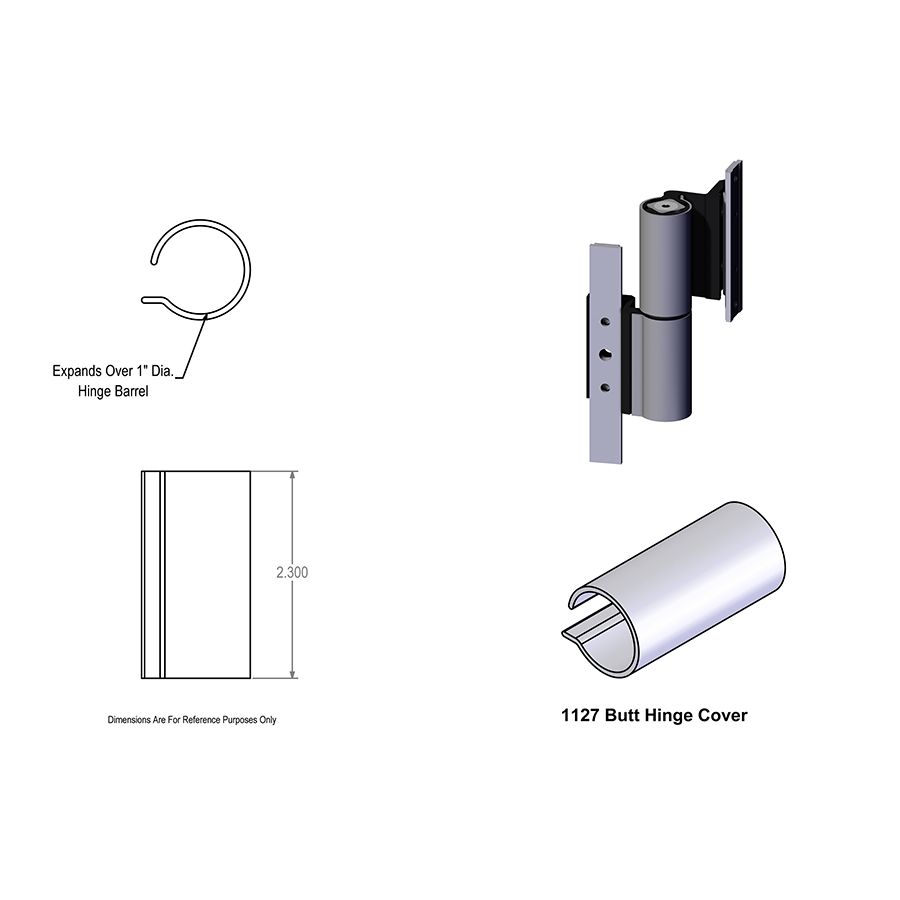

1127 Butt Hinge Cover
NUMBER OF HOLES Application Specific BARREL SIZES 1.00 KNUCKLES AVAILABLE 2 FLANGES Available LENGTHS AVAILABLE 4.625 inches ANNODIZED COLORS AVAILABLE Clear, Champagne, Light Bronze, Medium Bronze, Dark Bronze, Extra Dark Bronze, Black CHROMATE CONVERSION Can Be Painted with Bake Temperatures to 480 degrees F OPTIONS AVAILABLE Doors HANDED No FIELD ADJUSTABLE Lateral, Vertical and Compression HINGE MATERIAL 6000 Series Aluminum Alloy PIN MATERIAL Coated Stainless Steel BUSHING MATERIAL Plastic WINDOW MATERIAL Aluminum MAXIMUM STATIC VENT WEIGHT Vent Size Dependent Euro-groove butt hinges are offered in black anodized or chromate conversion. Color can be changed with the use of the 1127 Butt Hinge Cover.
Concealed Door Stops or Friction Adjusters are Recommended with all Butt Hinge Applications.
