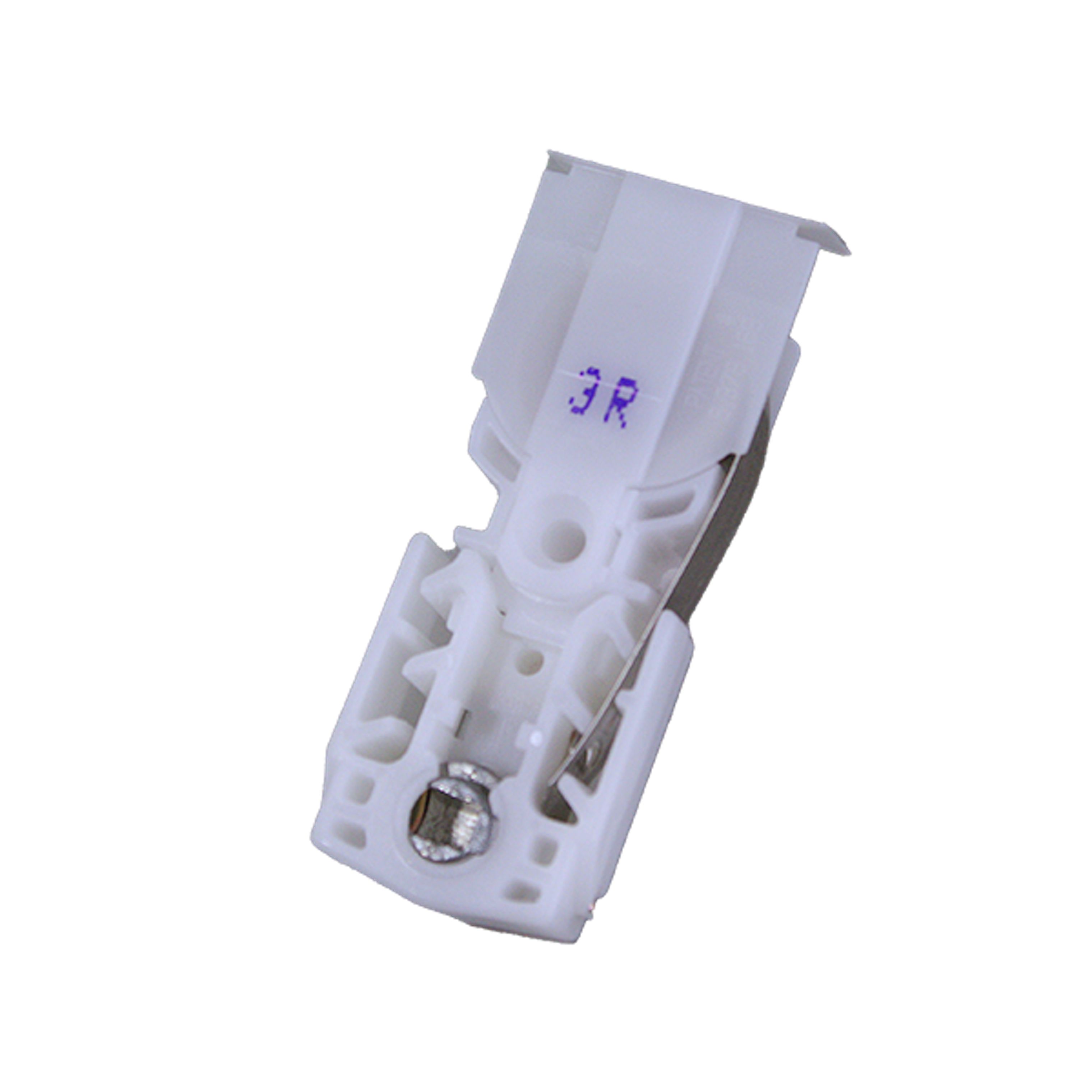

QUICKTILT® 562
Caldwell’s assembled Constant Force Balance System QUICKTILT® 562: Comes pre-assembled with a two piece new construction cover.
ROLLER TILT® Side Lock 562
Caldwell’s cartridge Constant Force Balance System ROLLER TILT® Side Lock 562 locks side-to-side for atypical jamb pockets. Featuring an extended weight range for the same fixed bracket and the springs traveling with the window sash, allowing the sash to move with significantly less friction and noise.
ROLLER TILT® Side Lock 562 succeeds AAMA Class 3 and a weight capacity of 4-80 lbs.
Available assembled or cartridge: with bracket attached.
Product Features
- Patented moving coil system provides lower operating force and less noise
Smooth & quiet operation - The robust drop-in cam provides excellent structural performance and accepts tie-in pivot bars.
- User friendly with safe sash cleaning
- Stainless steel springs are coated for low friction and corrosion resistance
- Balances are applied based on weight range, only: reducing SKUs and lower cost
- Can be purchased:
- Cartridge Directly from box to balance pocket with the bracket attached
A Lean solution: saves time, reduces SKUs and defect free. - Assembled Bracket arrives assembled, without a bracket attached
- Cartridge Directly from box to balance pocket with the bracket attached
- Optional Friction Screw available for Easy Field Adjustments

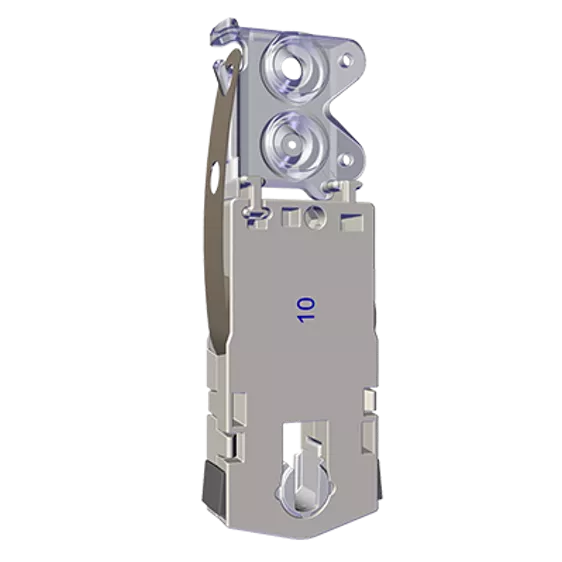

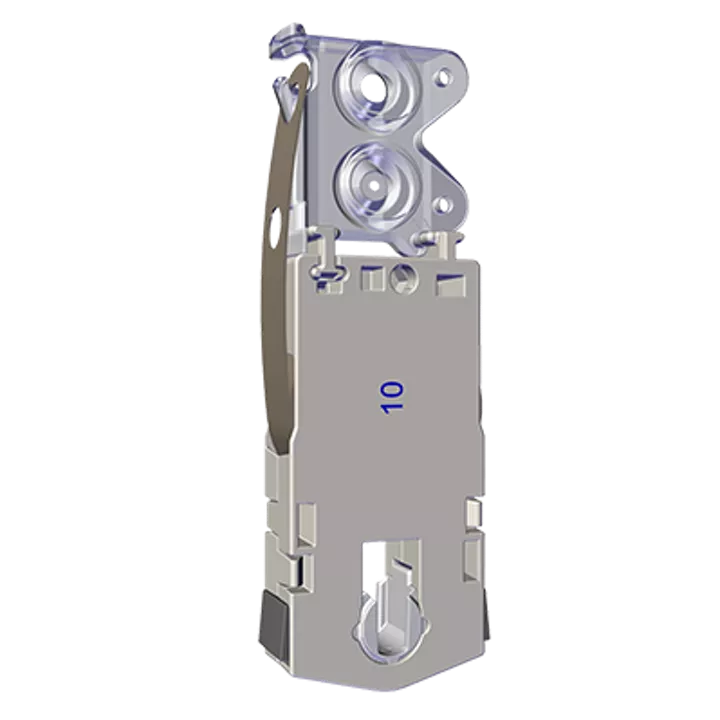

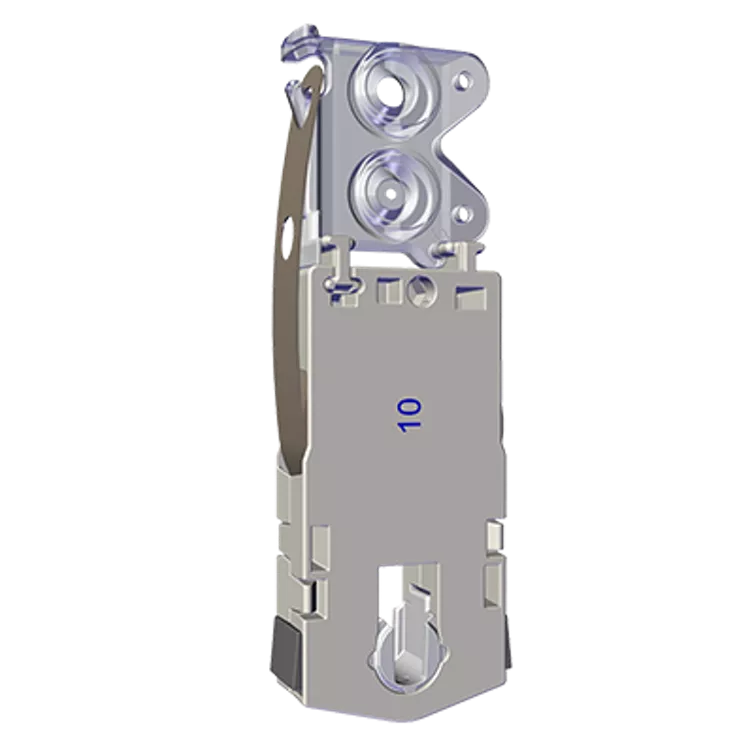

ROLLER TILT® Side Lock 562 Cartridge

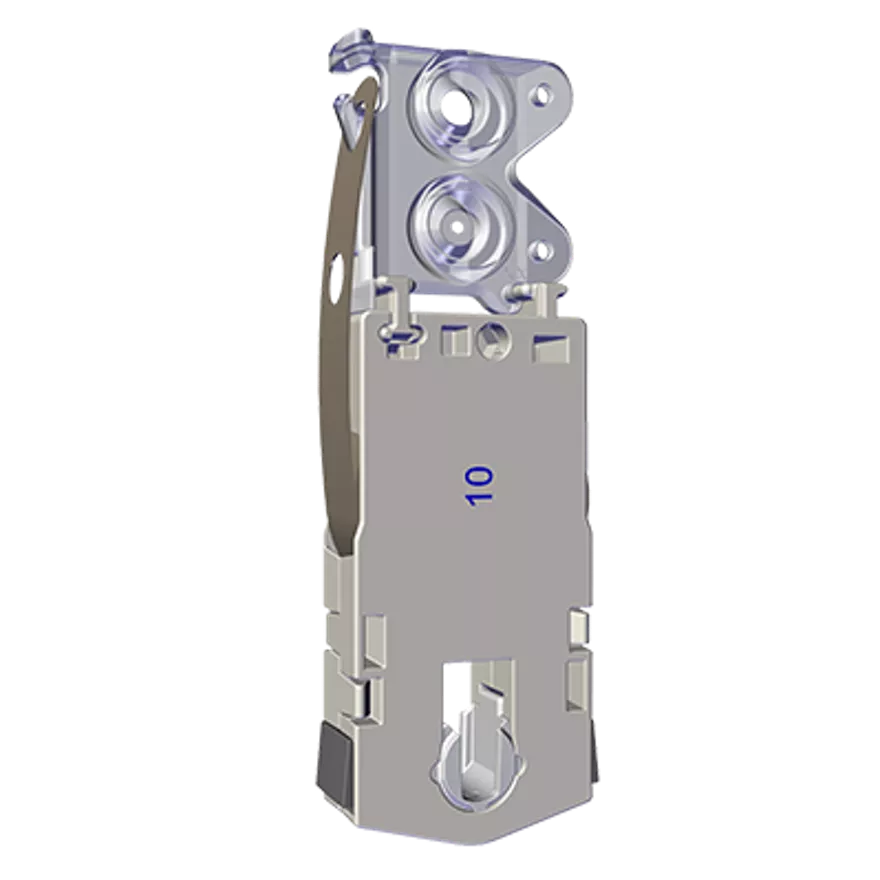

ROLLER TILT® Side Lock 562 Cartridge

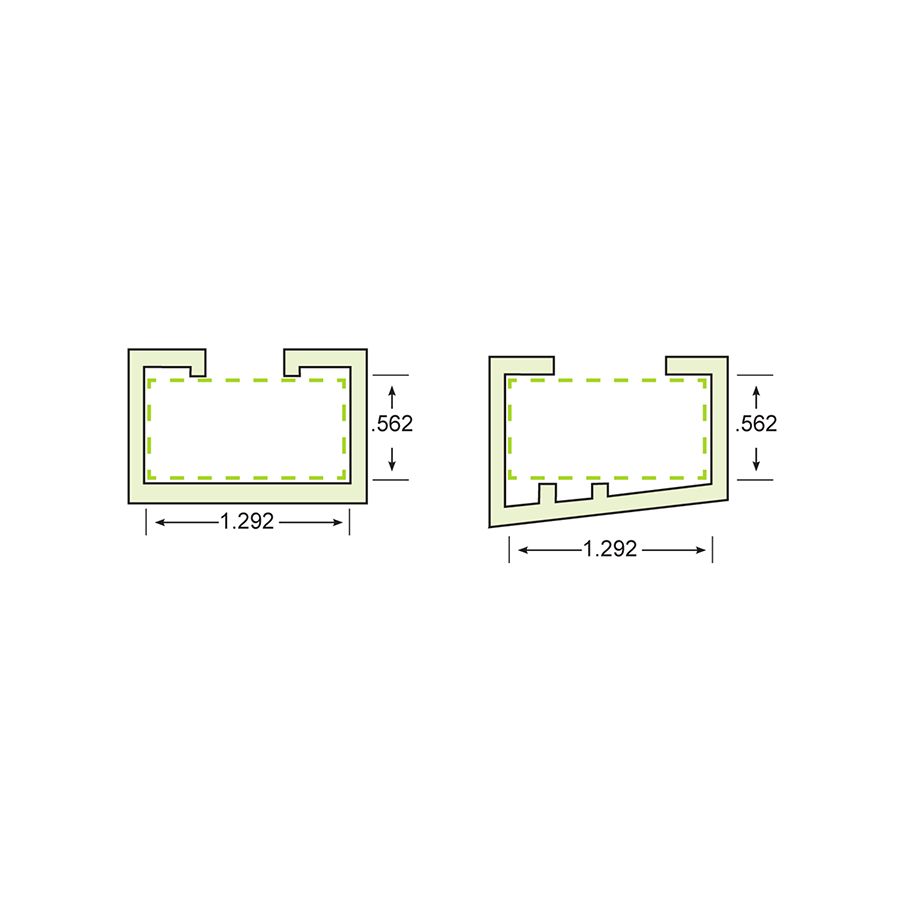

Suitable for standard or atypical jamb pockets

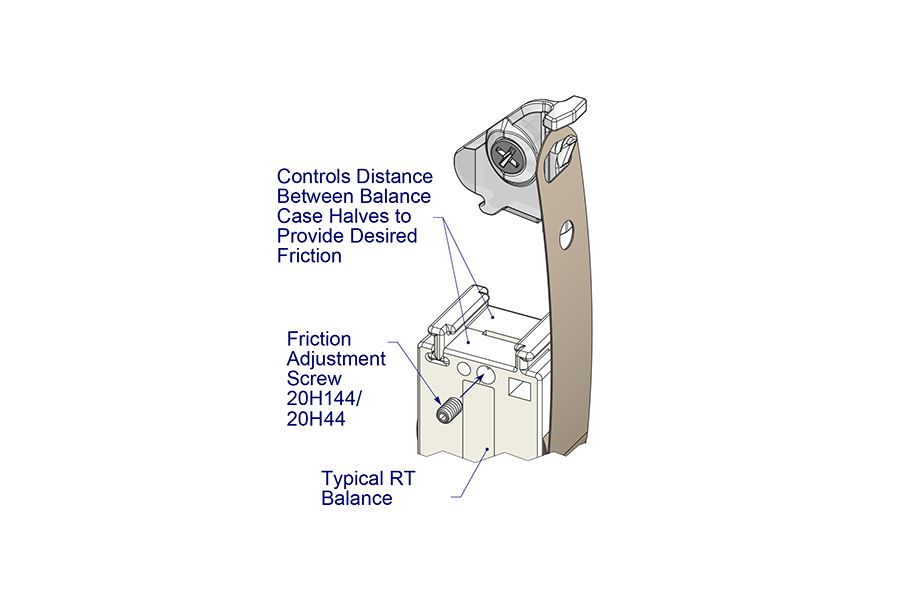

Optional Friction Adjustment Screw
TRAVEL (EXTENSION) 37.063 Inches TRAVEL (RETRACTION) 4.25 Inches SASH WEIGHT CAPACITY 4 lbs - 80 lbs MOVING OR FIXED COIL Moving SPRING POSITION Interior or Exterior PIVOT BAR HEAD Round POCKET SIZE 562: 9/16 X 1 1/4 (.562 X1.292) 625: 5/8 X 1 1/4 (.625 X1.292) BOX QUANTITY 3lb-11lb Singles: 150/Box; 11lb-20lb Tandems: 100/Box; 21lb - 30lb Triple: 50 Box; 31-40 Quad: 35/Box
Related products

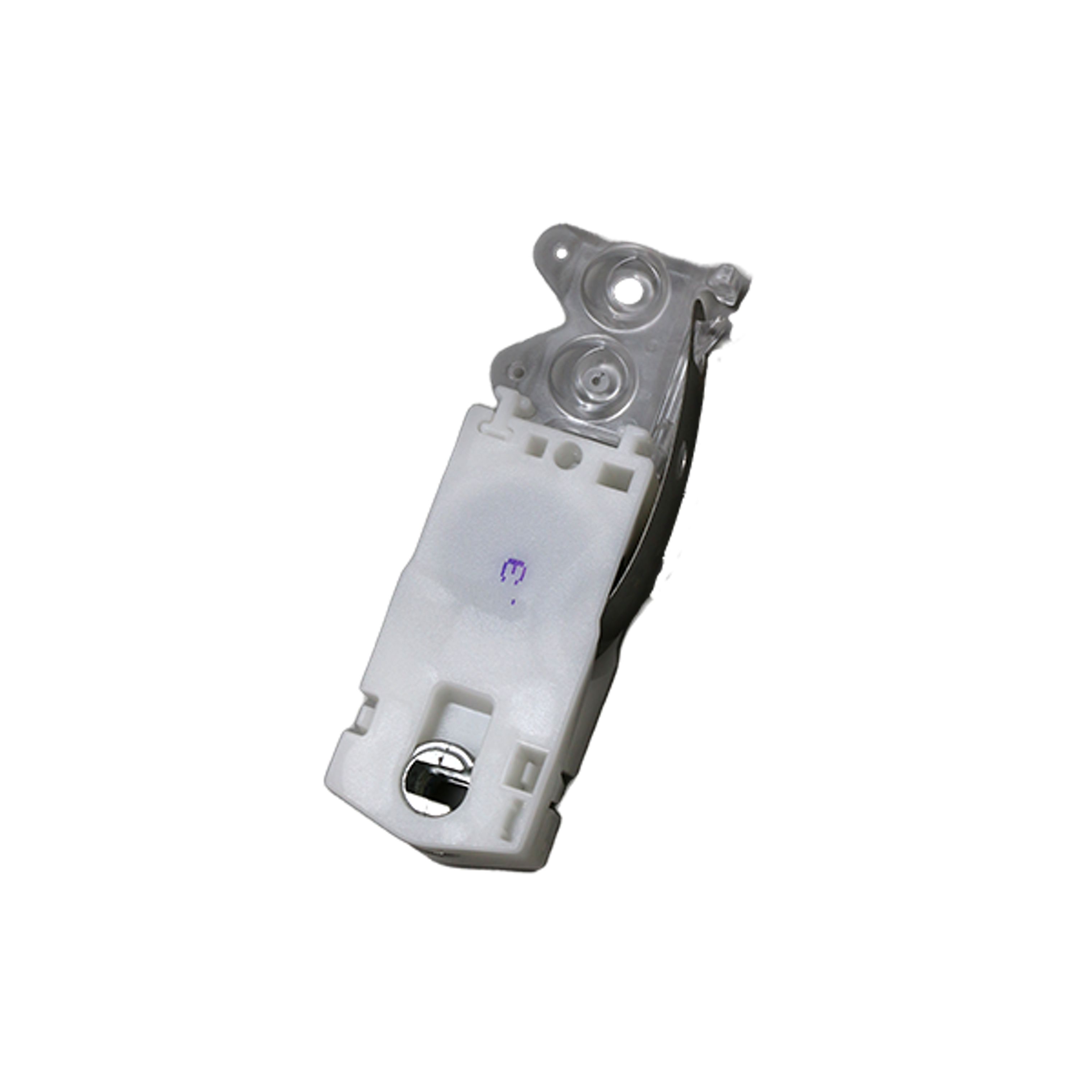

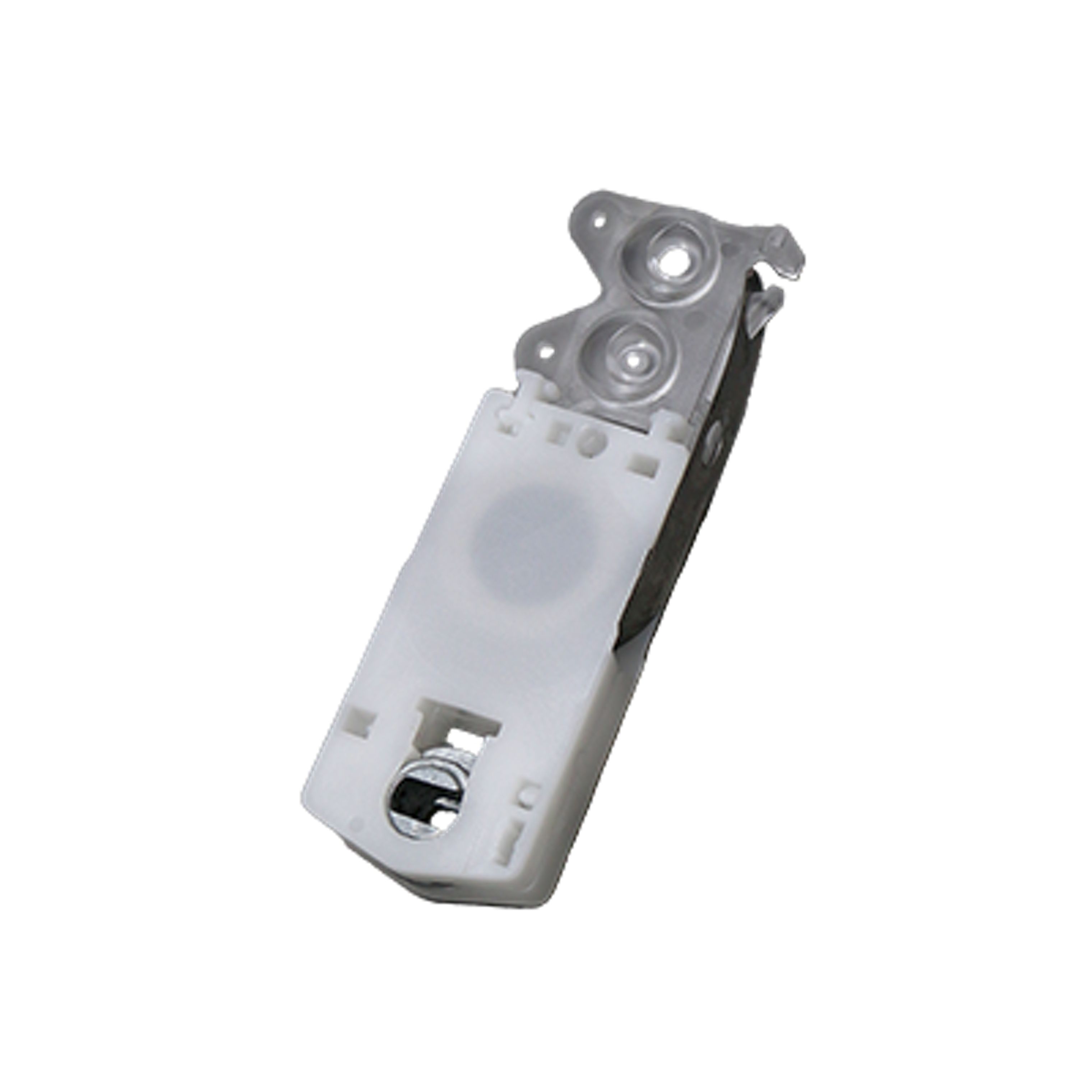

ROLLER TILT® Elite™ 562 & 625
