ROLLER TILT® Elite™ 562 & 625
Caldwell’s cartridge Constant Force Balance System ROLLER TILT® Elite™ 562 & 625 features an extended weight range for the same fixed bracket and the springs traveling with the window sash, allowing the sash to move with significantly less friction and noise.
ROLLER TILT® Elite™ 562 & 625 succeeds AAMA Class 3 and a weight capacity of 4-80 lbs.
Available assembled or cartridge: with bracket attached.
Product Features
- Patented moving coil system provides lower operating force and less noise
Smooth & quiet operation - The robust drop-in cam provides excellent structural performance and accepts tie-in pivot bars.
- User friendly with safe sash cleaning
- Stainless steel springs are coated for low friction and corrosion resistance
- Balances are applied based on weight range, only: reducing SKUs and lower cost
- Can be purchased:
- Cartridge Directly from box to balance pocket with the bracket attached
A Lean solution: saves time, reduces SKUs and defect free. - Assembled Bracket arrives assembled, without a bracket attached
- Cartridge Directly from box to balance pocket with the bracket attached
- Optional Friction Screw available for Easy Field Adjustments
- Optional Tamper Lock to limit unintended sash removal

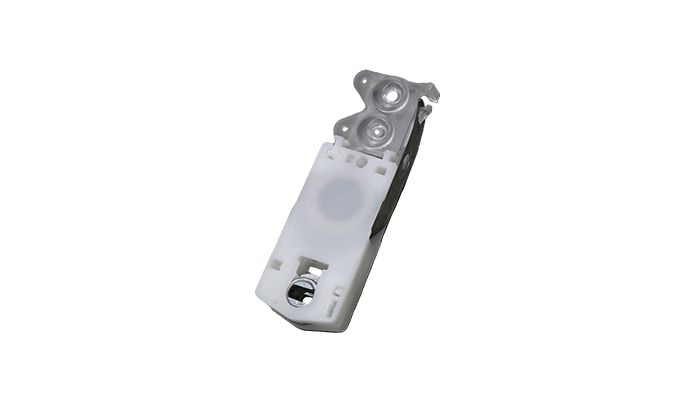

ROLLER TILT® Elite™ 562 Cartridge

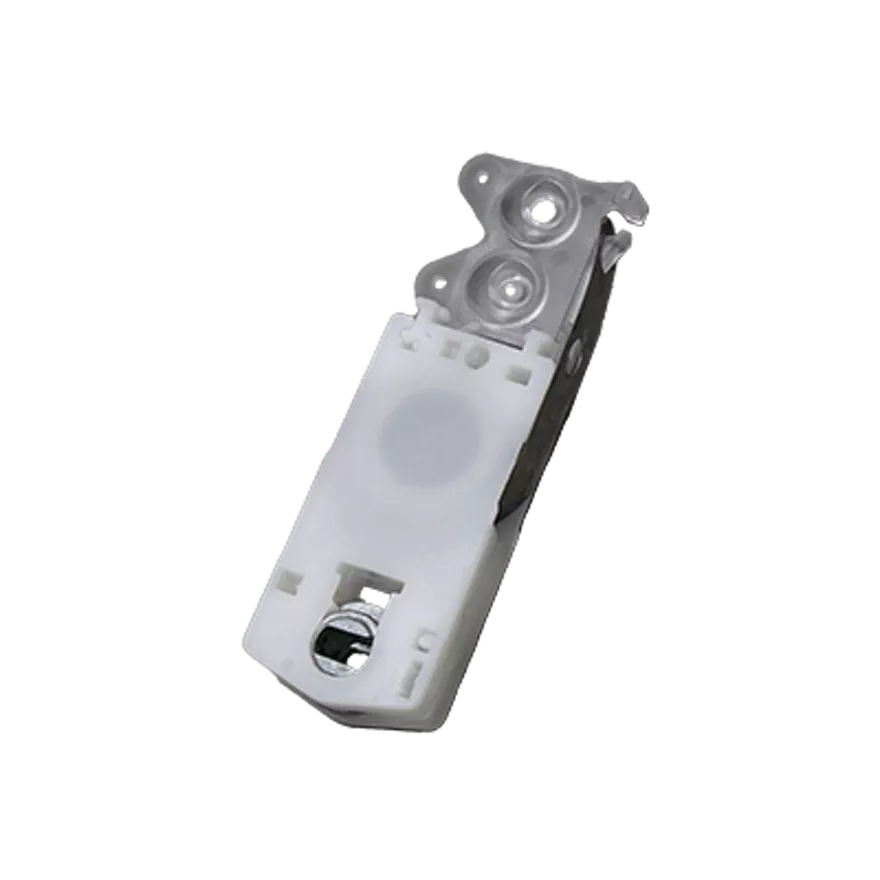

ROLLER TILT® Elite™ 562 Cartridge

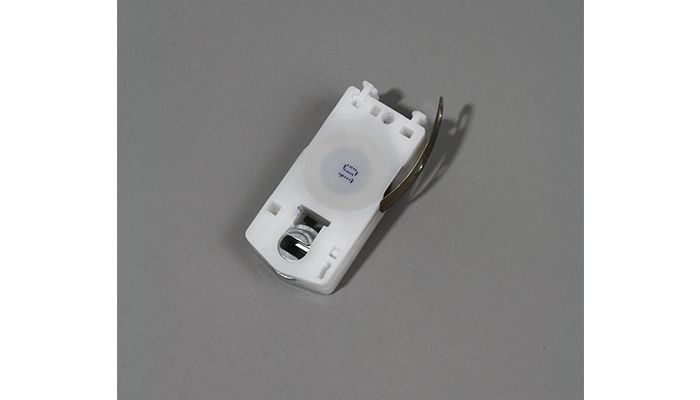

ROLLER TILT® Elite™ 562 Assembled

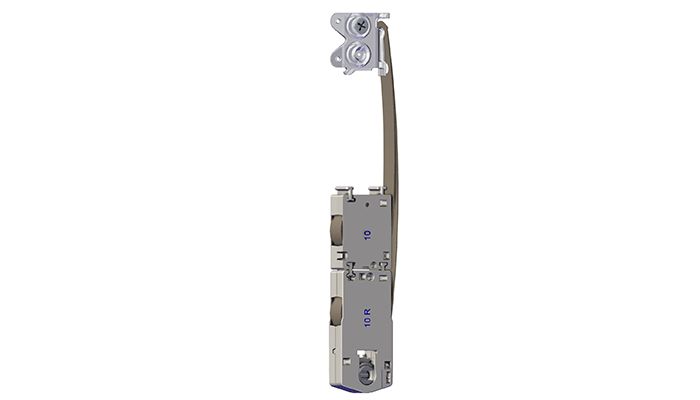

ROLLER TILT® Elite™ 562 Tandem

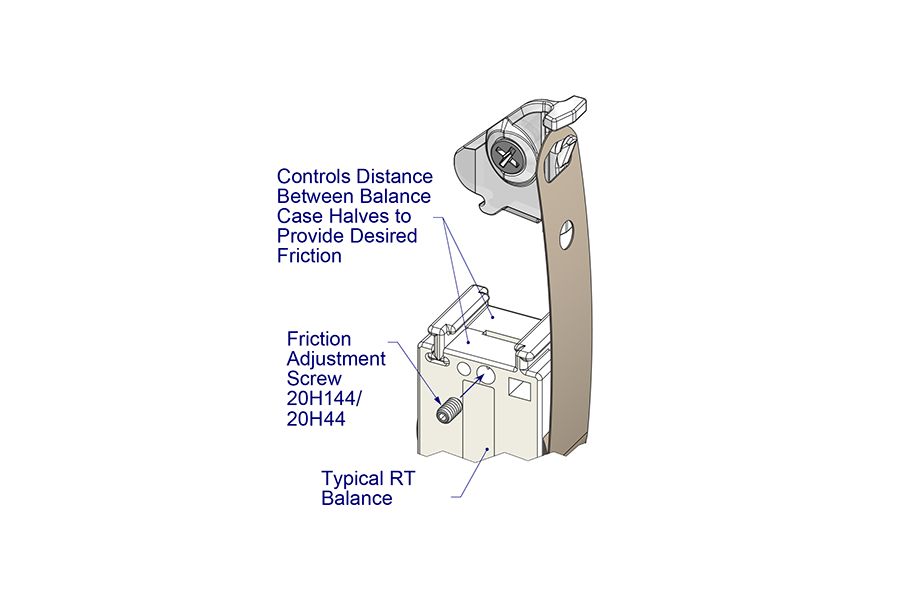

Optional Friction Adjustment Screw
TRAVEL (EXTENSION) 36.688 Inches TRAVEL (RETRACTION) 3.938 Inches SASH WEIGHT CAPACITY 4 lbs - 80 lbs MOVING OR FIXED COIL Moving SPRING POSITION Interior or Exterior TAMPERLOCK Optional PIVOT BAR HEAD Round POCKET SIZE 562: 9/16 X 1 1/4 (.562 X1.292) 625: 5/8 X 1 1/4 (.625 X1.292) BOX QUANTITY 3lb-11lb Singles: 150/Box; 11lb-20lb Tandems: 100/Box; 21lb - 30lb Triple: 50 Box; 31-40 Quad: 35/Box
