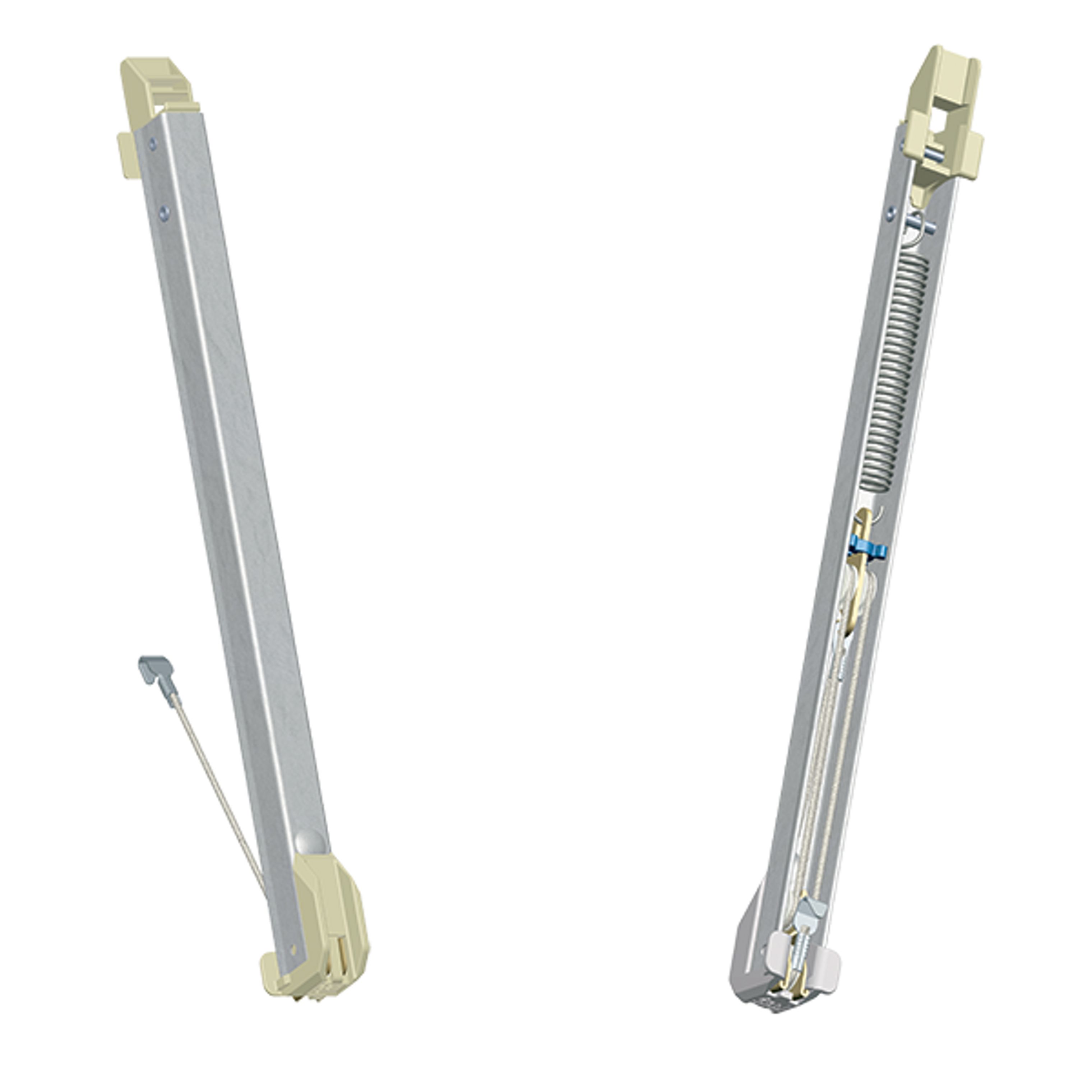

APEX®
An extended travel Block & Tackle Balance for sideload applications: Caldwell’s APEX® balance is available with multiple end guide configurations, for different jamb sizes.

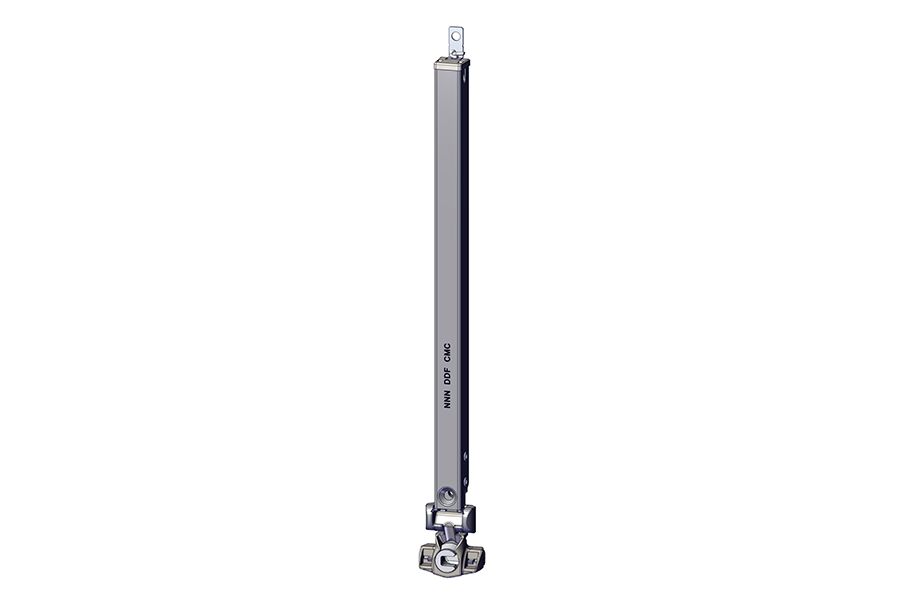

PRODIGY™
Caldwell’s inverted mount Block & Tackle Balance for tilt applications: the PRODIGY™ balance features a field replacement built-in carrier: installed without a notch out.
PRODIGY™ succeeds AAMA Class 2 with a weight capacity of 1-45 lbs and length of 7-46 inches.
Product Features

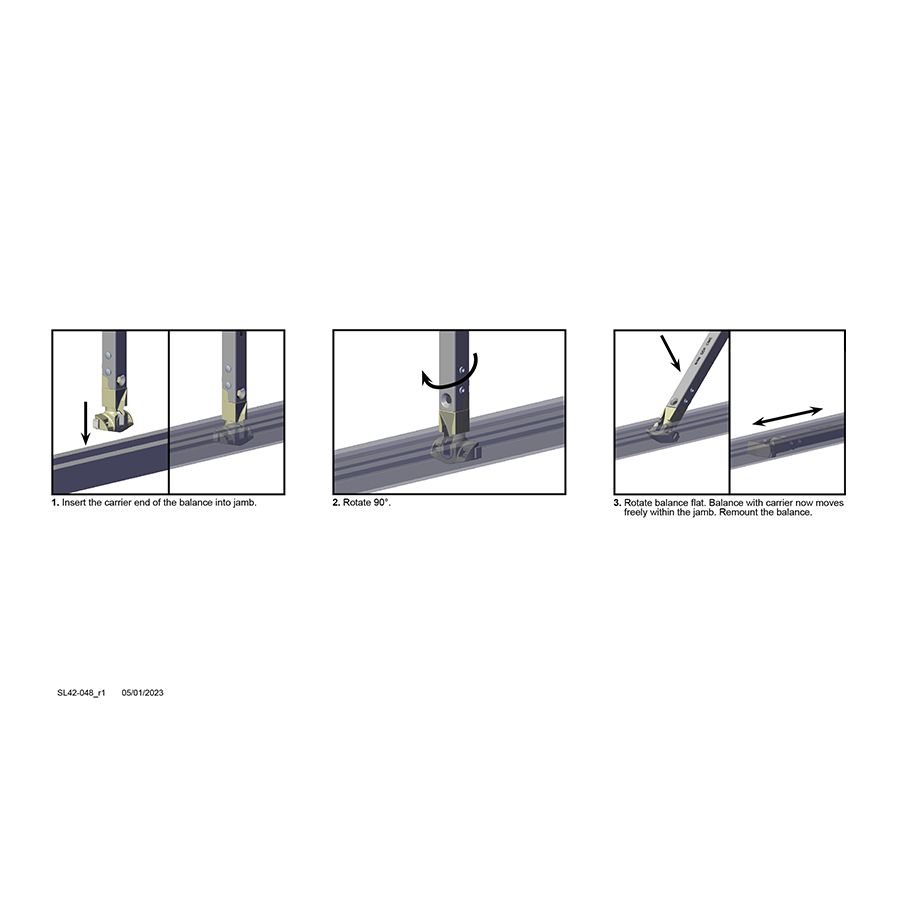

- Easy field replacement: simply insert into the carrier into the jamb and rotate
- Allows for maximum sash opening, an egress solution
- Caldwell’s Music Wire Springs offer reliable and consistent operation
- The rear laced cord prevents interference with tilt latches
- Balance travels with the sash, so no colors or jamb covers are needed

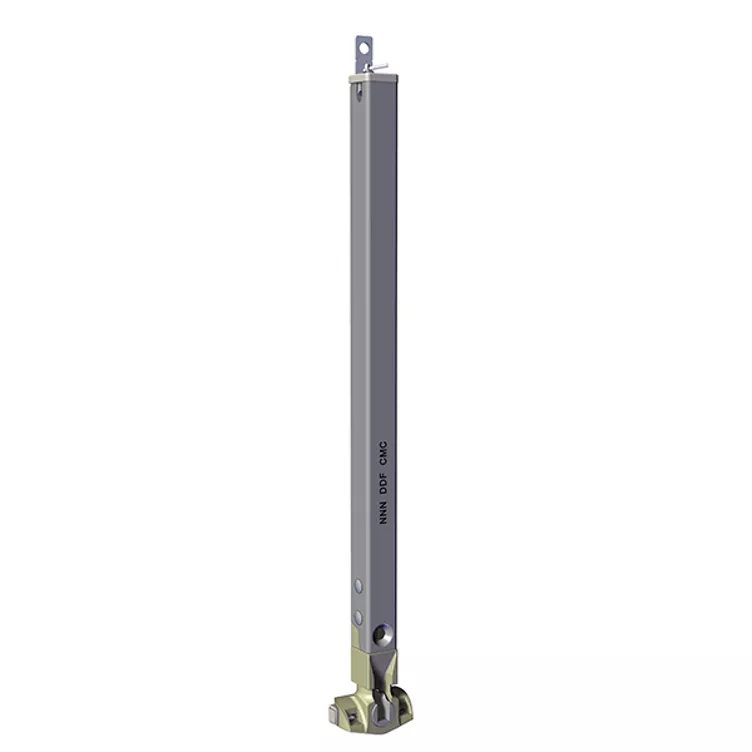

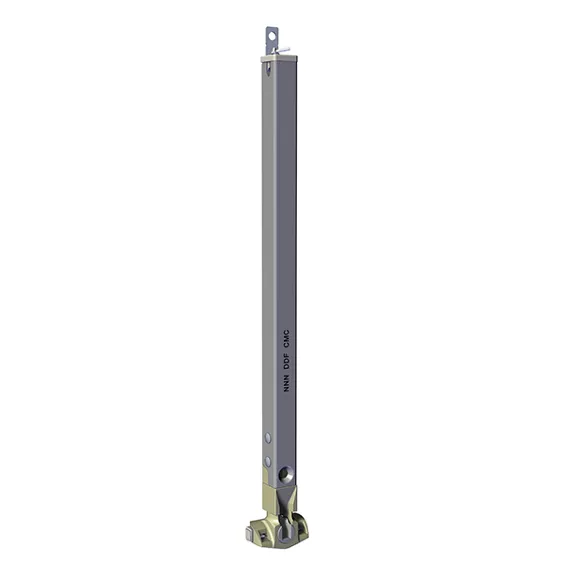

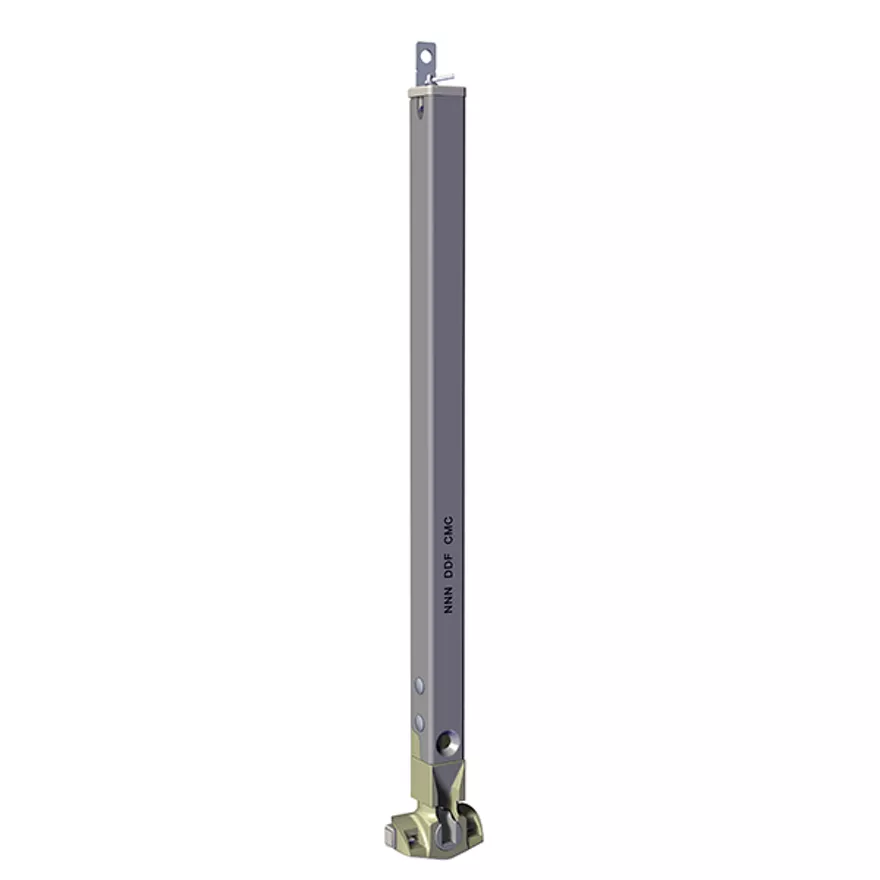

Enhanced PRODIGY™ 20B0034
Enhanced PRODIGY™ 20B0034
PRODIGY™ 20B0034 Field Replacement
PRODIGY™ 20B0013
BALANCE SIZE .605” x .545” TRAVEL (EXTENSION) Equal to balance number TRAVEL (RETRACTION) .12” min. SASH WEIGHT CAPACITY 2 lbs - 45 lbs EGRESS CAPABLE Yes BALANCE LENGTH (MIN) 7 inches BALANCE LENGTH (MAX) 46 inches BALANCE TYPE Inverted Tilt PIVOT BAR HEAD Mini T* CHANNEL PROFILE Square MOUNTING METHOD Hook or Screw Mount CORD TERMINAL 15C206 or 15C207 COLOR Mill FINISH Galvanized BOX QUANTITY 50 *Note: PRODIGY™ 20B0013 Works with Round Head Pivot Bars
