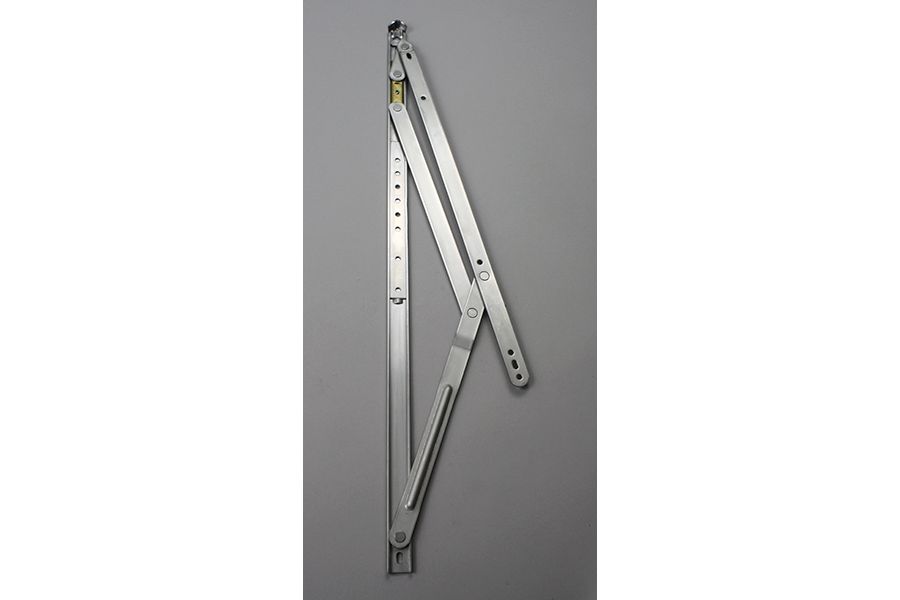

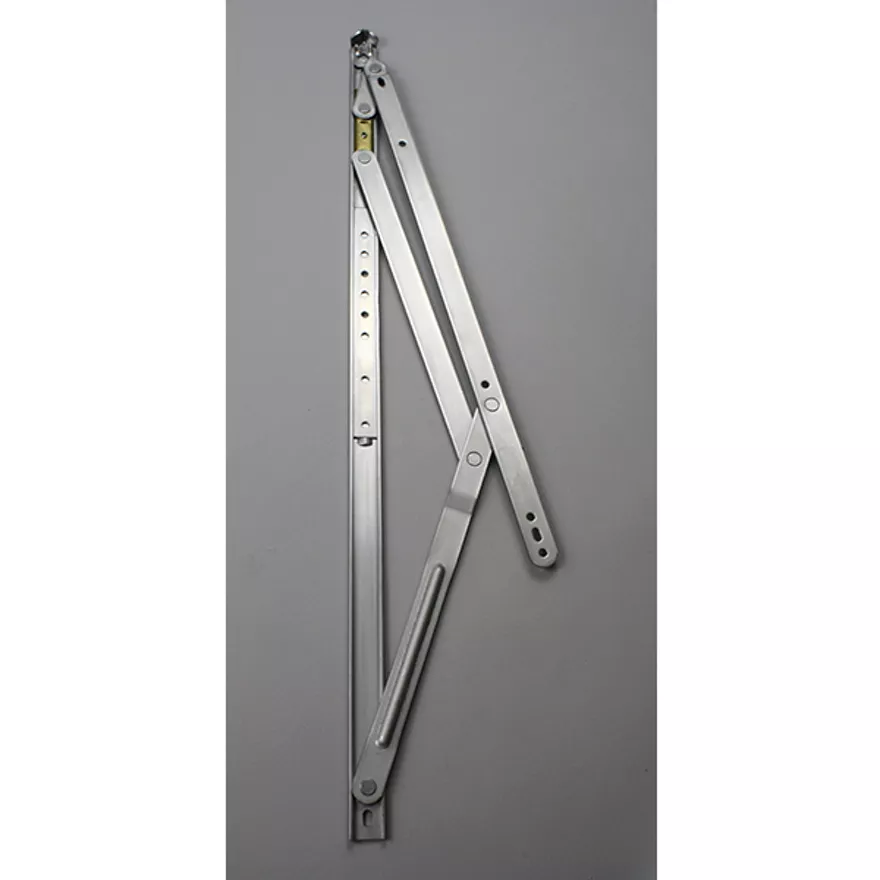

MAGNUM® SG Projection
Caldwell’s MAGNUM® SG Projection hinges: non-handed hinges for larger Structurally Glazed, Inline or Offset, commercial grade windows.
Supports sash/vent weights up to 308 Lbs
Product features
- Patented end cap to provide positive weather strip contact
- Extra long solid brass structural shoe with 2.5 times more surface area
- “Easy to Access” Friction adjustment screw
- “Front Loaded Geometry” provides easy vent operation and holds vent open at desired position
- Stainless steel “Adjustable Limit Stop” is integrated into the track. Standard on all hinge sizes
- Reinforced support arm (Double reinforcement on 28” size)
- Austenitic stainless steel and brass construction
- Tested to AAMA 904
SG Projection
SG Projection

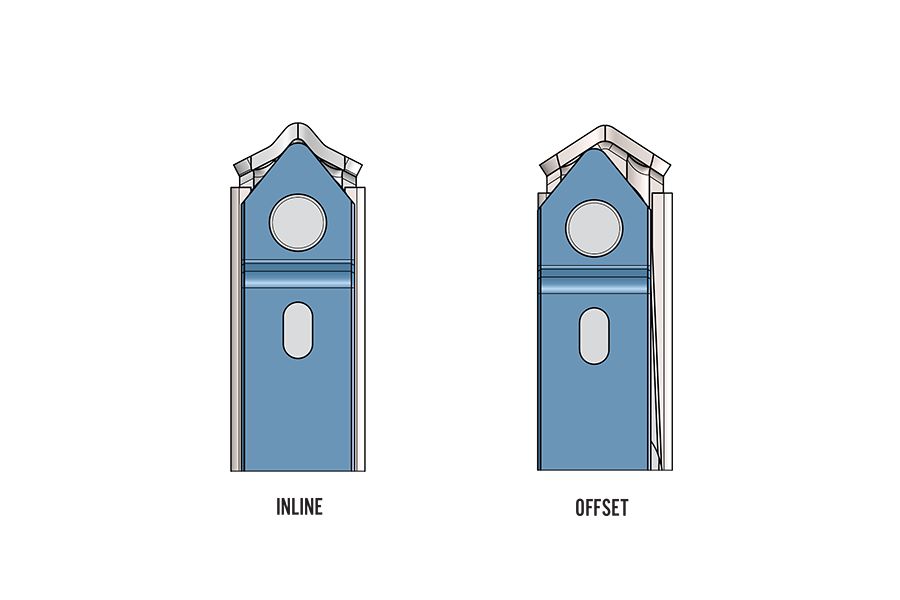

Inline & Offset Mounting Options
WINDOW TYPE Projection MOUNTING TYPE Inline & Offset HINGE STACK HEIGHT 0.625", 16mm^ SASH/VENT WEIGHT MAX 308 Lbs SASH/VENT HEIGHT MIN 36" SASH/VENT HEIGHT MAX 87" HINGE LENGTH 20", 24", 28" ADA CAPABILITY Yes AW TESTING Yes NYC/DOH Achievable: Application Dependent CERTIFICATIONS AAMA 904.09 HINGE FRICTION OPTIONS Architectural Tension, Commercial Tension, Loose Rivet* MATERIAL TYPE Stainless Steel, Brass Shoe SCREW SIZE #10 (M5) POSITIVE GASKET COMPRESSION Yes BOX QUANTITY 50 pcs COUNTRY OF ORIGIN USA See Downloads for Specific Hinge Sizes, Capacity and Opening Degree.
^A Shim can be used to Increase Hinge Stack Height.
*Friction Adjustment Screw Not Available on Loose Rivet Tension.
Contact Caldwell for Application Dependent Questions.
