MAGNUM® Projection
Caldwell’s MAGNUM® Projection hinges: non-handed hinges for Inline, Offset and Channel Mount commercial grade windows.
Available with multiple options:
- Series i: integrated reversible limit devices
- MIS: movable integrated stop options
Product features
- Non Handed Design
- Reinforced Collector Cap For High Design Pressures
- Hex Drive Friction Adjustment Screw
- Austenitic Stainless Steel And Solid Brass Construction
- Three Factory Pre-Loaded Hinge Tension Levels Available
- Exclusive “Gap Tight” Feature Assures Gasket Compression
- AAMA Tested To 904-09
- Easily Satisfy Opening Requirements (Including NYC/DOH) with Optional Built-In Additions:
- Series i: Integrated Releasable Limit Device
- MIS: Moveable Integrated Stop

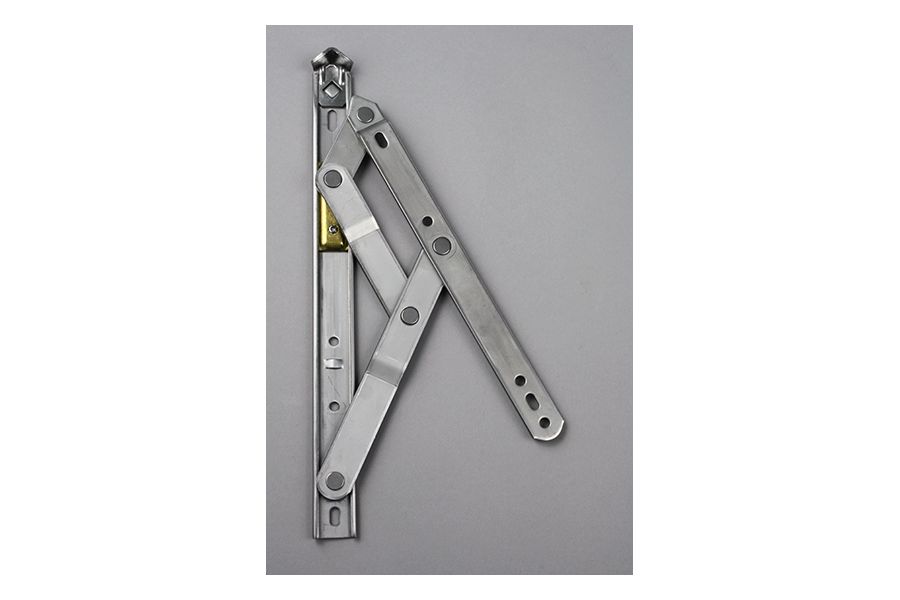

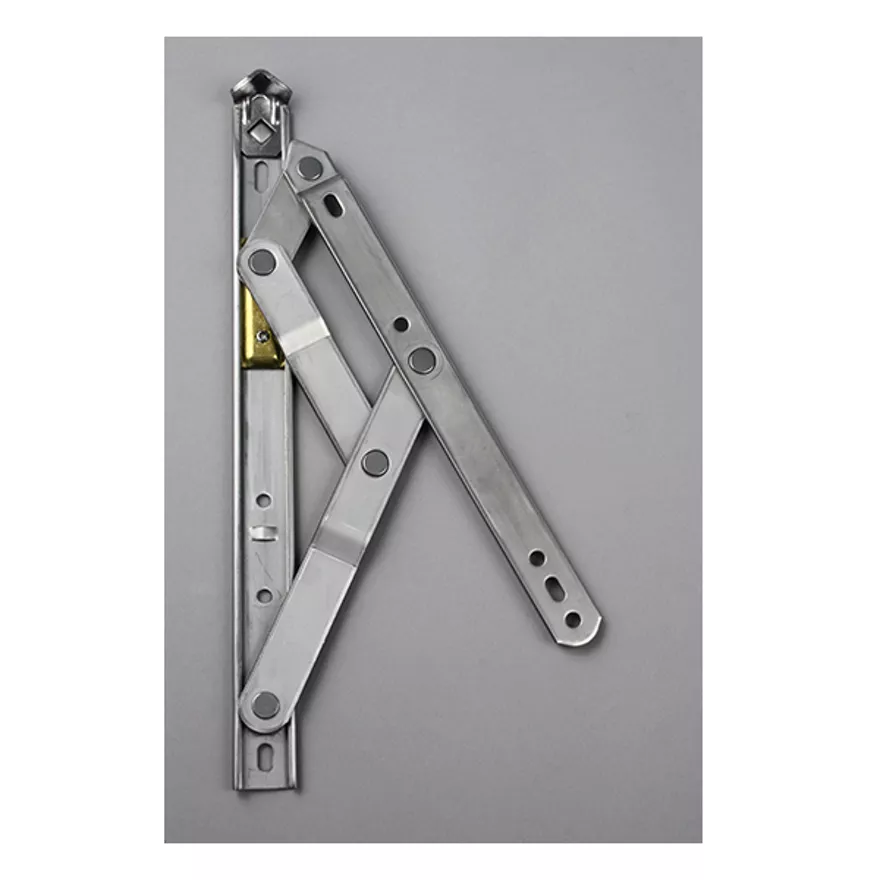

MAGNUM® Projection
MAGNUM® Projection

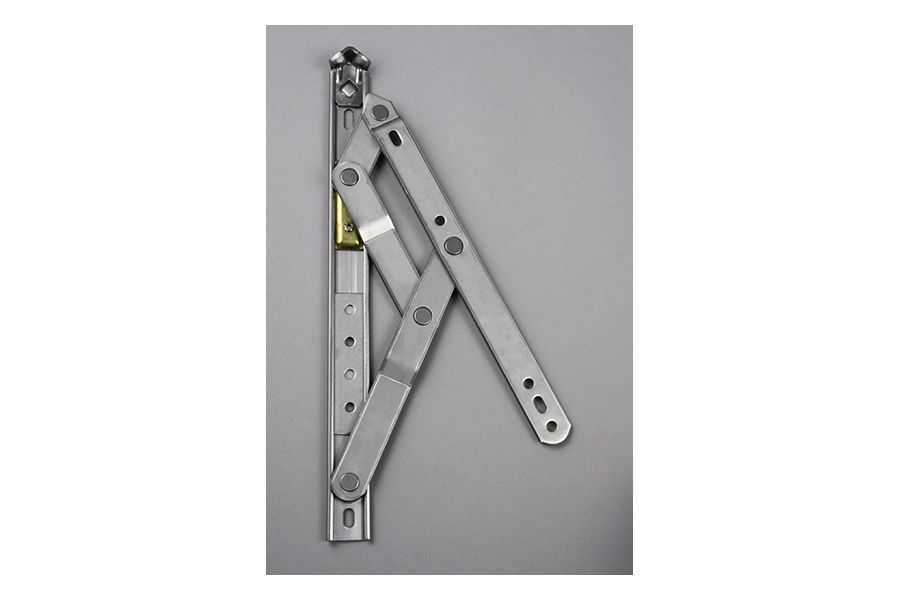

MAGNUM® Projection MIS

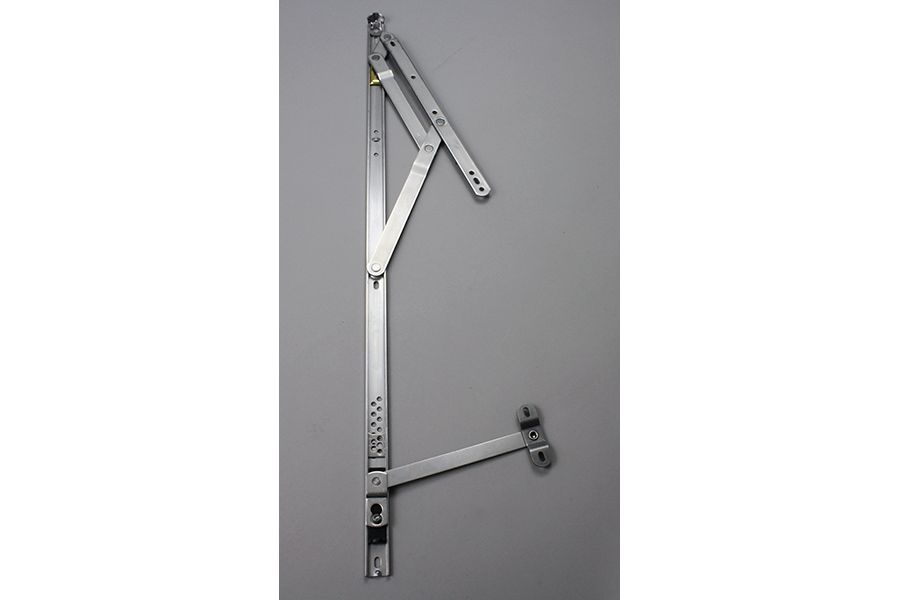

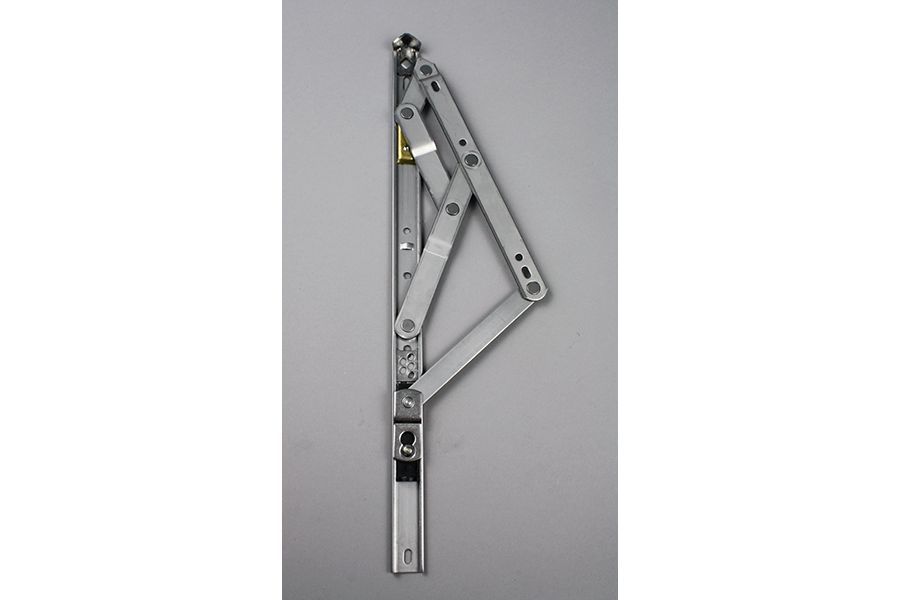

MAGNUM® Projection Series i 10"
MAGNUM® Projection Series i 16"

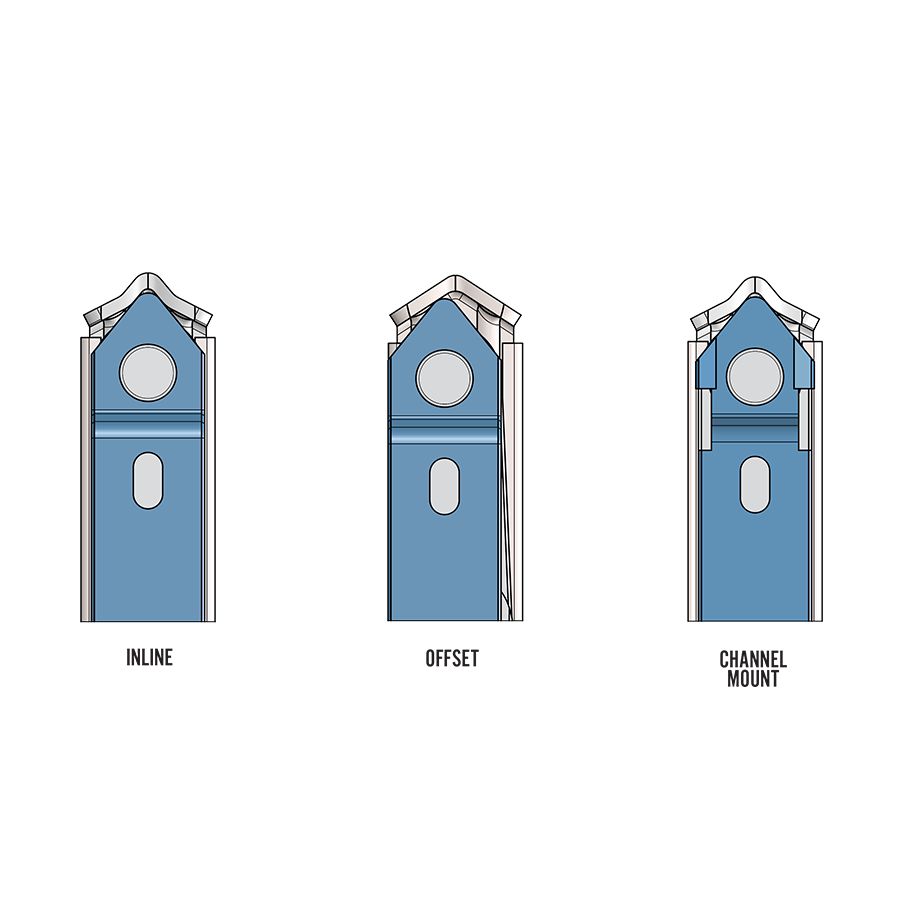

Mounting Types
WINDOW TYPE Projection MOUNTING TYPE Inline, Offset & Channel (Euro Groove Type 1 & 2) HINGE STACK HEIGHT 0.625", 16mm^ (Channel Mount: 0.453", 11.5mm^) SASH/VENT WEIGHT MAX 180 Lbs SASH/VENT HEIGHT MIN 11" SASH/VENT HEIGHT MAX 60" HINGE LENGTH 10", 12", 16", 20", 24" ADA CAPABILITY Yes AW TESTING Yes NYC/DOH Achievable: Application Dependent CERTIFICATIONS AAMA 904.09 HINGE FRICTION OPTIONS Architectural Tension, Commercial Tension, Loose Rivet* MATERIAL TYPE Stainless Steel, Brass Shoe SCREW SIZE #10 (M5) POSITIVE GASKET COMPRESSION Yes BOX QUANTITY 50 pcs COUNTRY OF ORIGIN USA Channel Mount available for Euro Groove in Type 1 & Type 2. Available in Hinge Lengths: 10″, 16″, 24″.
Series i: Available in Hinge Lengths: 10″, 16″; Max Weight of 125 Lbs.
See Downloads for Specific Hinge Sizes, Capacity and Opening Degree.
^A Shim can be used to Increase Hinge Stack Height.
*Friction Adjustment Screw Not Available on Loose Rivet Tension.
Contact Caldwell for Application Dependent Questions.
