MAGNUM® Monumental
Caldwell’s MAGNUM® Monumental Projection hinges: a top hung solution for easy operation of monumentally tall projected vents, up to 450 lbs.
Handed hinges for Offset commercial grade windows.
Product features
- A MAGNUM® Monumental Hinge for a Monumentally
Tall Projected Vent - “Front Loaded Geometry” provides easy vent operation
and holds vent open at desired position - Stainless steel “Adjustable Limit Stop” is integrated into the track.
- Austenitic stainless steel construction
- Tested to AAMA 904

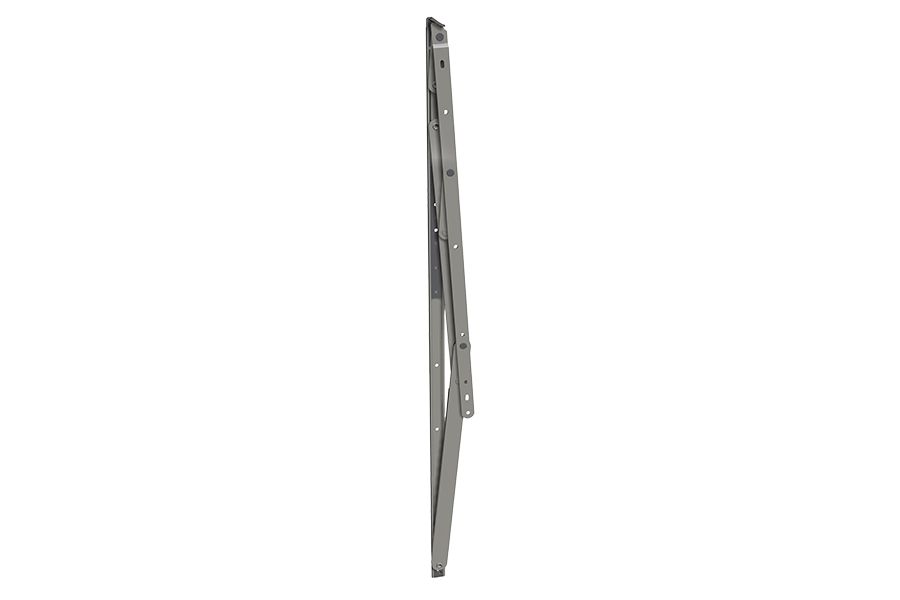

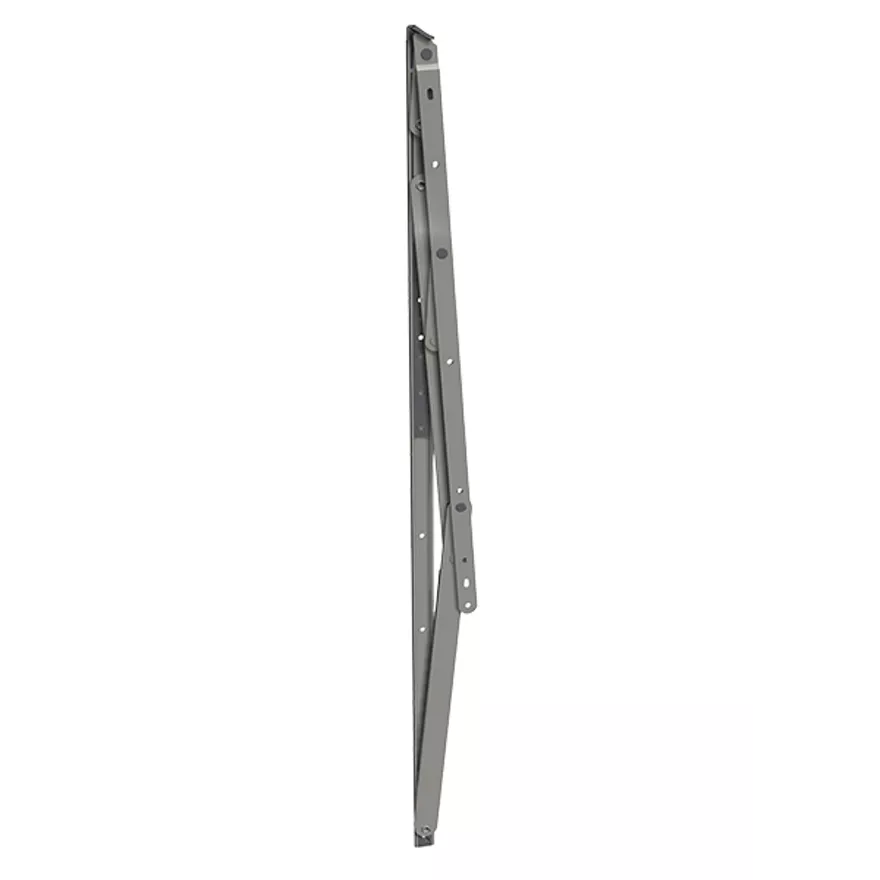

MAGNUM® Monumental Projection hinge
MAGNUM® Monumental Projection hinge

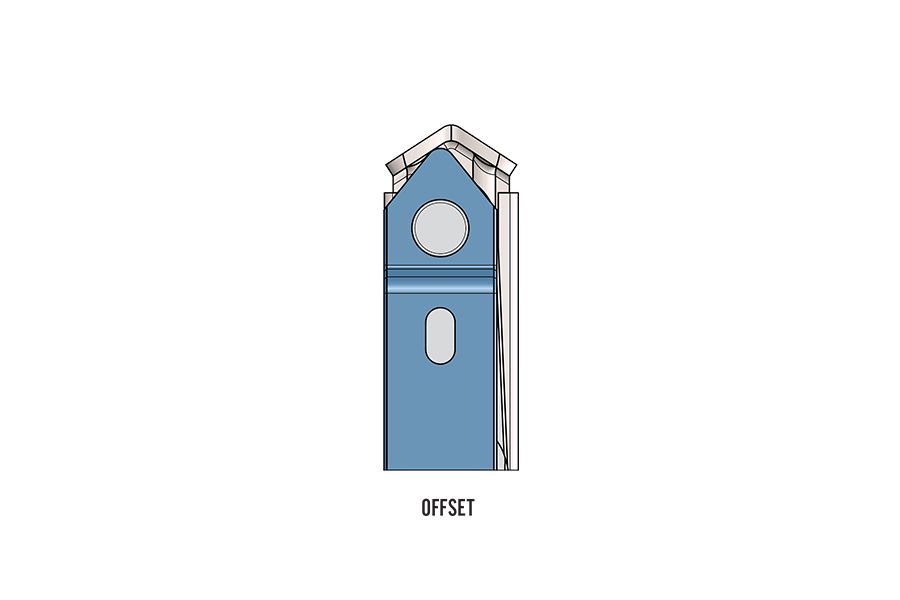

Offset Mounting
WINDOW TYPE Projection MOUNTING TYPE Offset HINGE STACK HEIGHT 0.625", 16mm^ SASH/VENT WEIGHT MAX 450 Lbs SASH/VENT HEIGHT MIN 87" SASH/VENT HEIGHT MAX 110" HINGE LENGTH 33" AW TESTING Yes NYC/DOH Achievable: Application Dependent CERTIFICATIONS AAMA 904.21 ADJUSTABLE LIMIT STOP Integrated MATERIAL TYPE Stainless Steel HINGE FRICTION OPTIONS Architectural Tension SCREW SIZE #10 (M5) POSITIVE GASKET COMPRESSION Yes BOX QUANTITY 6 pairs COUNTRY OF ORIGIN USA See Downloads for Specific Hinge Sizes, Capacity and Opening Degree.
^A Shim can be used to Increase Hinge Stack Height.
Additional limit devices and snubbers are required.
Contact Caldwell for Application Dependent Questions.
