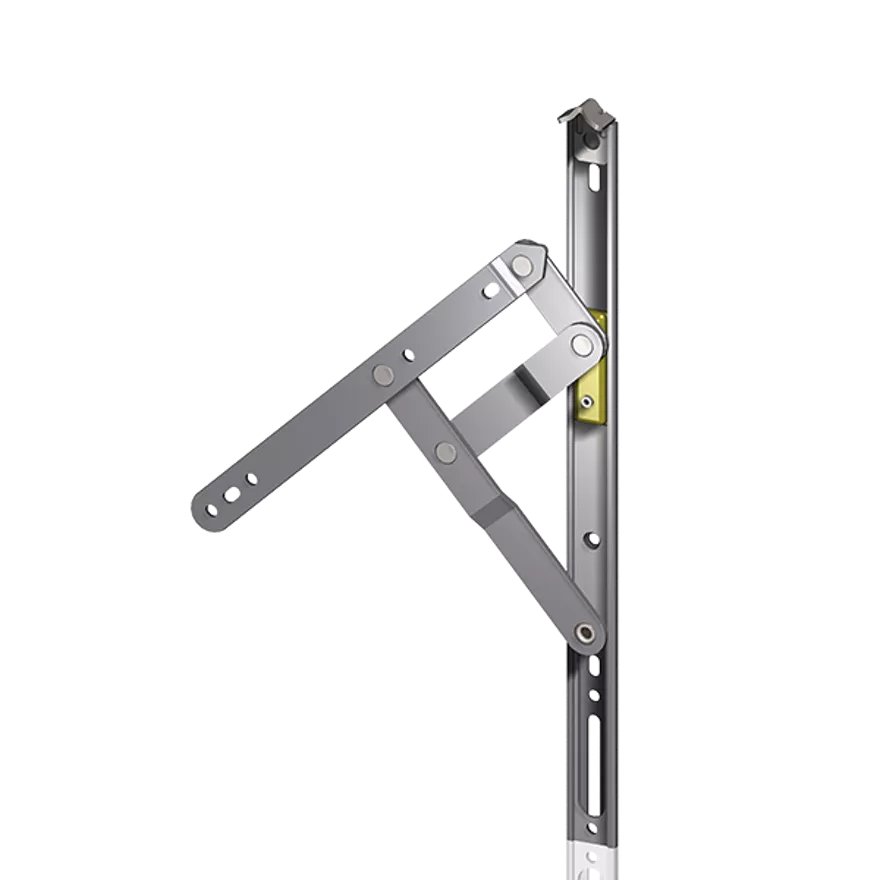

MAGNUM® EZi Projection
Caldwell’s MAGNUM® EZi Projection hinges: easy hinge installation
No cutting limit stops & no fabrication, infinitely adjustable, limit device built into the hinge.
Non-handed hinges for Inline, Offset and Channel Mount commercial grade windows.
Product features
- LEAN Solution: Installer Friendly
- No Cutting Limit Stops & No Fabrication Necessary
- Infinitely Adjustable: Achieve Any Desired Opening
- Fully Contained: Limit Device Built Into The Hinge
- Non Handed Design
- Multiple Mounting Options
- Reinforced Collector Cap For High Design Pressures
- Hex Drive Friction Adjustment Screw
- Austenitic Stainless Steel And Solid Brass Construction
- Three Factory Pre-Loaded Hinge Tension Levels Available
- Exclusive “Gap Tight” Feature Assures Gasket Compression

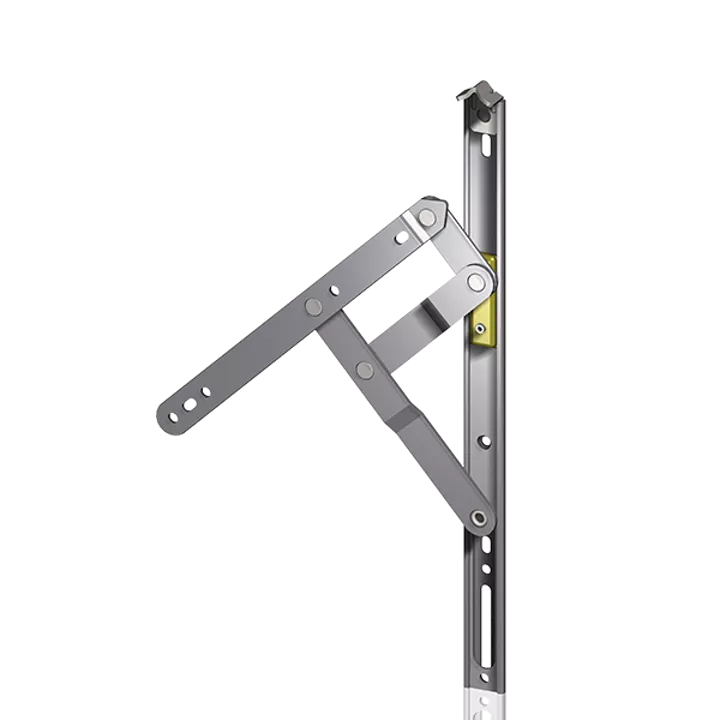

MAGNUM® EZi Projection
MAGNUM® EZi Projection

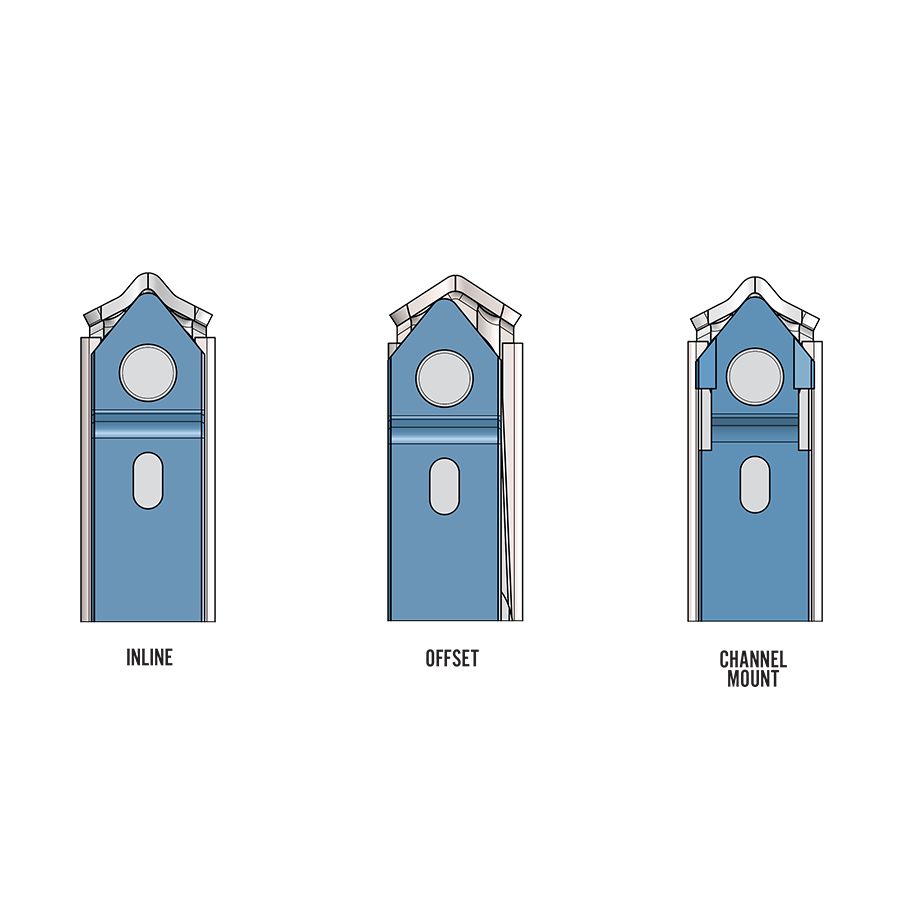

Mounting Types
WINDOW TYPE Projection MOUNTING TYPE Inline, Offset & Channel (Euro Groove Type 1 & 2) HINGE STACK HEIGHT 0.453", 11.5mm^ SASH/VENT WEIGHT MAX 88 Lbs SASH/VENT HEIGHT MIN 13.25" (Inside Frame) SASH/VENT HEIGHT MAX 27.375" (Inside Frame) HINGE LENGTH 10" ADA CAPABILITY Yes AW TESTING Yes NYC/DOH Achievable: Application Dependent CERTIFICATIONS AAMA 904.09 HINGE FRICTION OPTIONS Architectural Tension, Commercial Tension, Loose Rivet* MATERIAL TYPE Stainless Steel, Brass Shoe SCREW SIZE #10 (M5) POSITIVE GASKET COMPRESSION Yes BOX QUANTITY 50 pcs COUNTRY OF ORIGIN USA Channel Mount available for Euro Groove in Type 1 & Type 2.
See Downloads for Specific Hinge Sizes, Capacity and Opening Degree.
^A Shim can be used to Increase Hinge Stack Height.
*Friction Adjustment Screw Not Available on Loose Rivet Tension.
Contact Caldwell for Application Dependent Questions.
