MAGNUM® Egress Casement
Caldwell’s MAGNUM® Egress Casement hinges: hinges for Offset and Channel Mount commercial grade windows with 90° opening capability.
Product features
- 90° Opening Capability
- Offset’s non handed Patented “Power Drive” Feature Drives Hinge Open And Closed Providing Mechanical Assistance To The Hinge 4-Bar Geometry
- Solid Brass Shoe And Bearing Surface
- Extra Thick Support Links
- One Piece Extra Thick Collector Cap With “Gap Tight” feature
- Channel Mount’s handed Two Factory Pre-Loaded Hinge Tension Levels Available
- Adjustable Both Vertically And In Compression
- Hex Drive Function Adjustment Screw
- Austenitic Stainless Steel and Solid Brass Construction

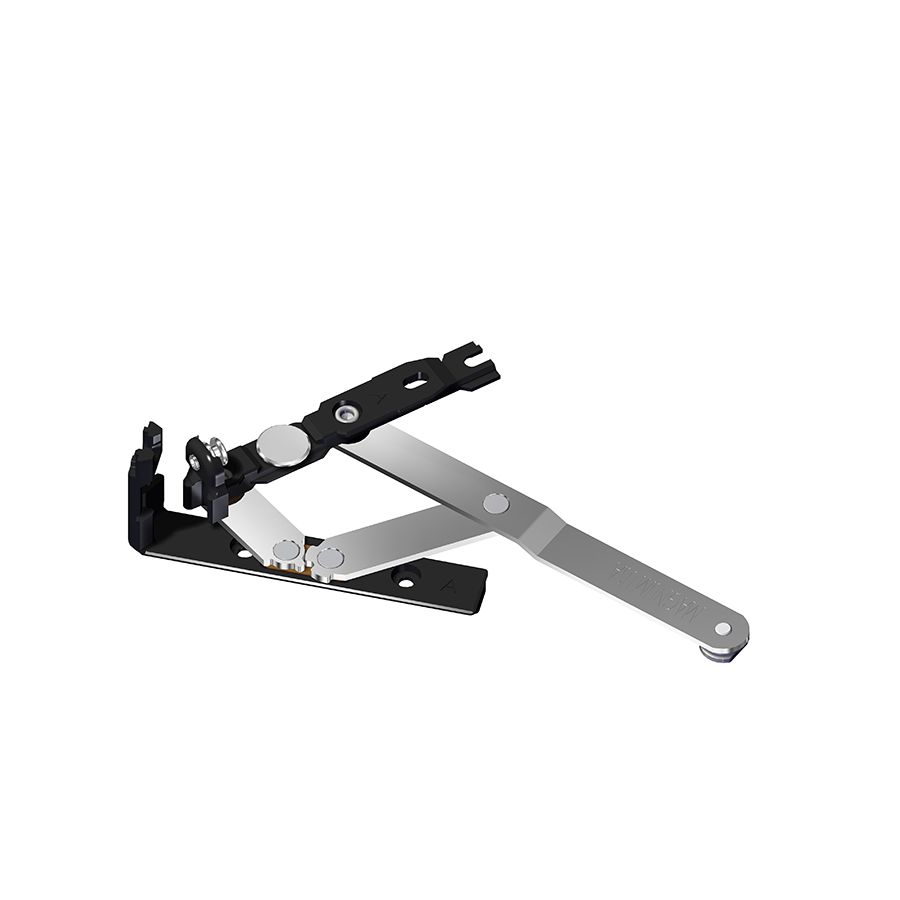

MAGNUM® Egress Casement Channel Mount

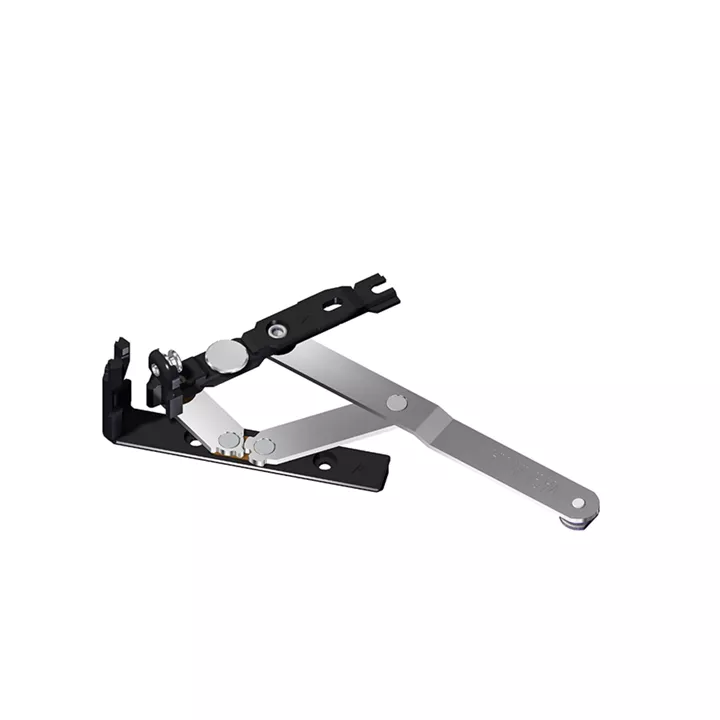

MAGNUM® Egress Casement Channel Mount

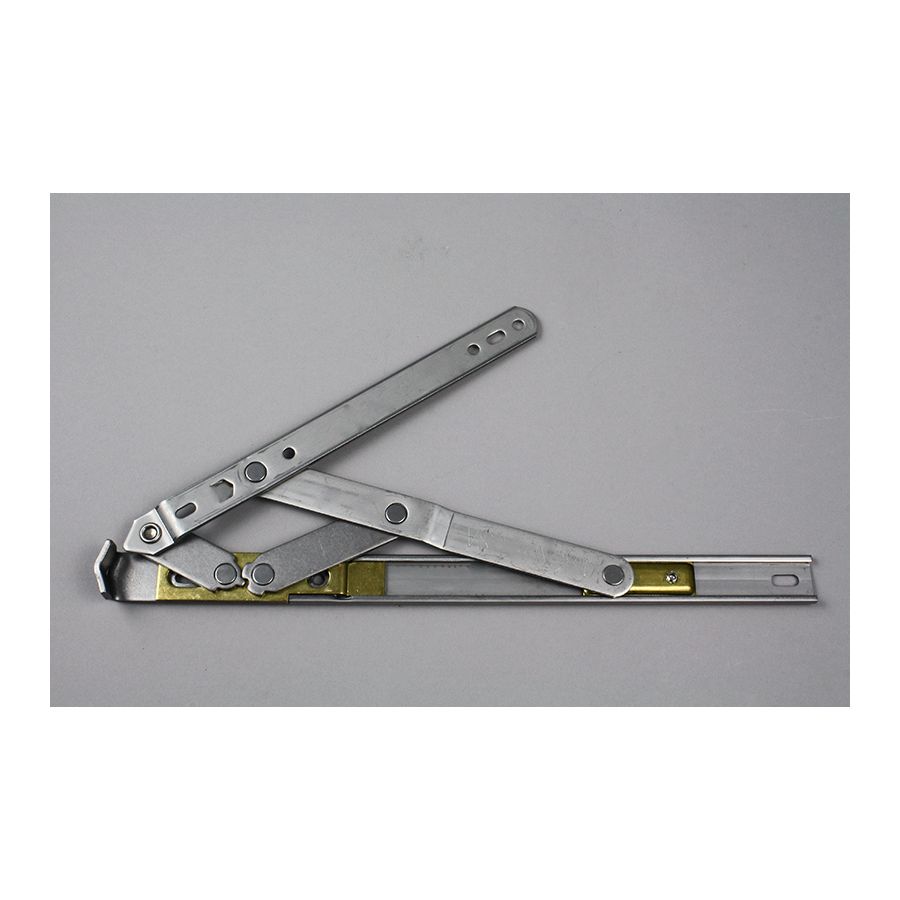

MAGNUM® Egress Casement Offset
WINDOW TYPE Casement Egress 90 Degree Opening MOUNTING TYPE Offset & Channel (Euro Groove Type 1) HINGE STACK HEIGHT 0.625", 16mm^ (Channel Mount: 0.453", 11.5mm^) SASH/VENT WEIGHT MAX 180 Lbs SASH/VENT HEIGHT MIN 11" SASH/VENT HEIGHT MAX 48" HINGE LENGTH Offset: 12" Channel Mount: 10" ROTATION LOAD 36 Lbs ADA CAPABILITY Yes AW TESTING Yes NYC/DOH Achievable: Application Dependent CERTIFICATIONS AAMA 904.09 HINGE FRICTION OPTIONS Offset: Commercial Tension, Loose Rivet* MATERIAL TYPE Stainless Steel, Brass Shoe SCREW SIZE #10 (M5) POSITIVE GASKET COMPRESSION Yes BOX QUANTITY 50 pcs COUNTRY OF ORIGIN USA Channel Mount available for Euro Groove in Type 1.
Offset is available for limited Sash/Vent Weight: 160 lbs and Width: 13″-36″.
See Downloads for Specific Hinge Sizes, Capacity and Opening Degree.
^A Shim can be used to Increase Hinge Stack Height.
*Friction Adjustment Screw Not Available on Loose Rivet Tension.
Contact Caldwell for Application Dependent Questions.
