MAGNUM® Casement
Caldwell’s MAGNUM® Casement hinges: non-handed hinges for Inline, Offset and Channel Mount commercial grade windows.
Available option:
- Series i: integrated reversible limit devices
Product features
- Non Handed Design
- Flat Top Shoe Design Provides Solid Bearing Surface For Hinge Links
- Reinforced Collector Cap For High Design Pressures
- Hex Drive Friction Adjustment Screw
- Austenitic Stainless Steel And Solid Brass Construction
- Three Factory Pre-Loaded Hinge Tension Levels Available
- Exclusive “Gap Tight” Feature Assures Gasket Compression
- Provides “Backside” Clearance For Window Washing At Full Open Position
- AAMA Tested To 904-09
- Easily Satisfy Opening Requirements (Including NYC/DOH) with Optional Built-In Addition:
- Series i: Integrated Releasable Limit Device
MAGNUM® Casement

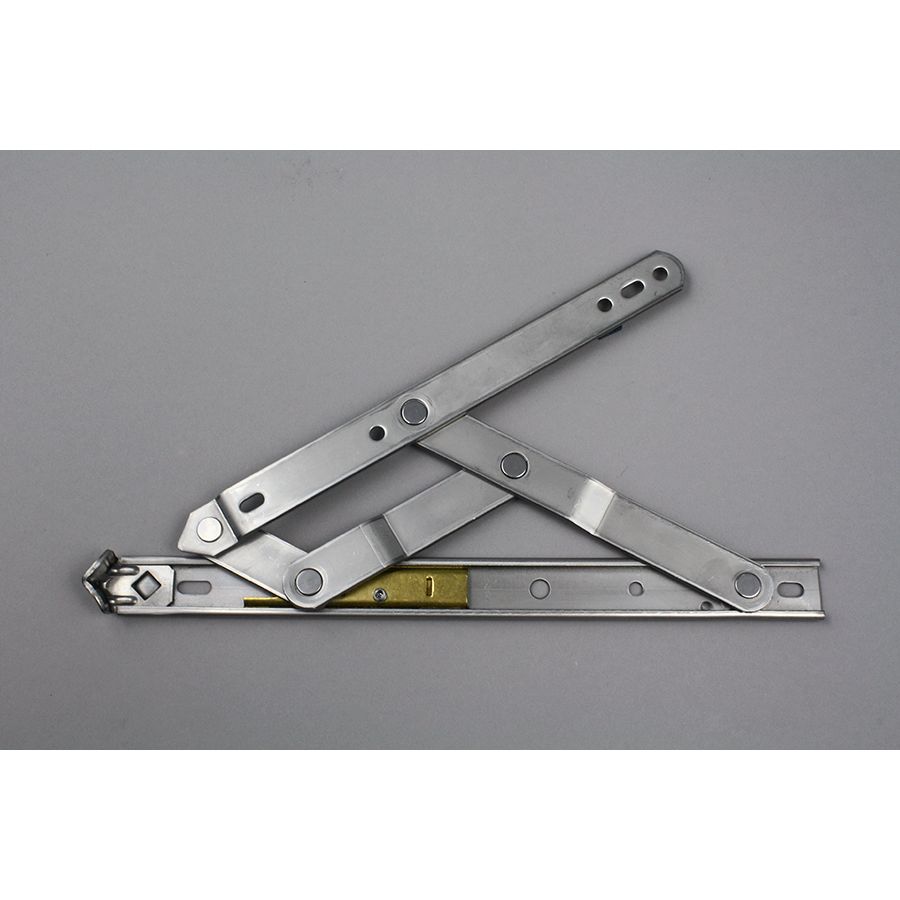

MAGNUM® Casement

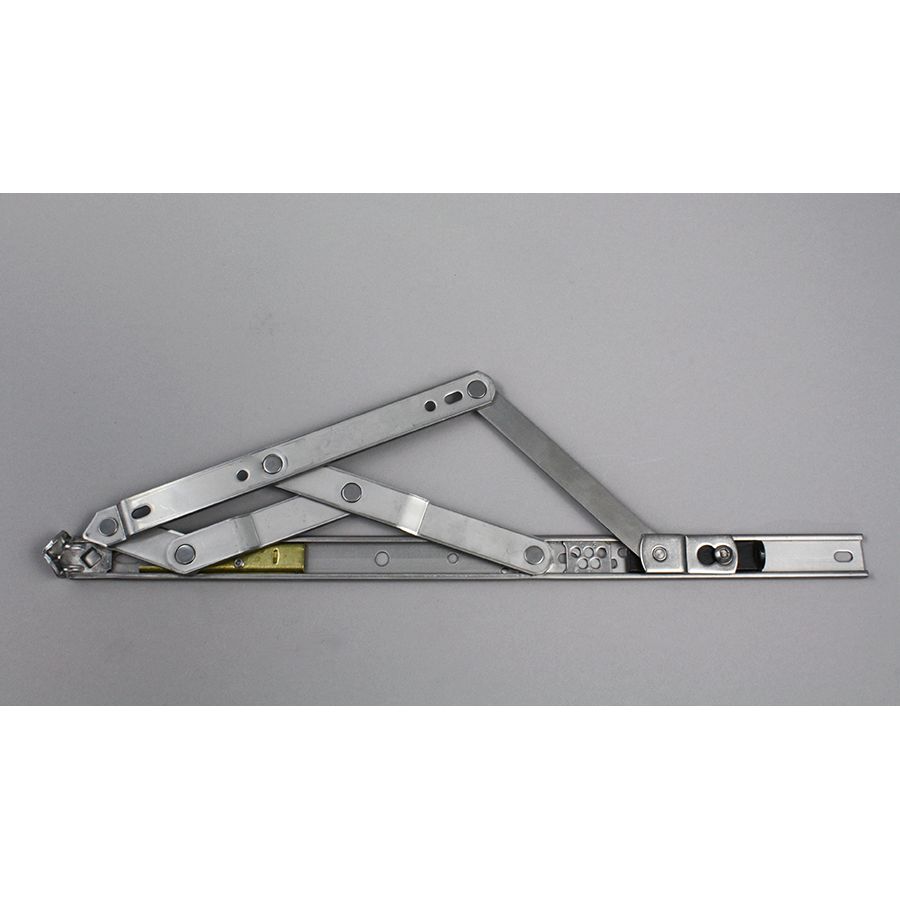

MAGNUM® Casement Series i

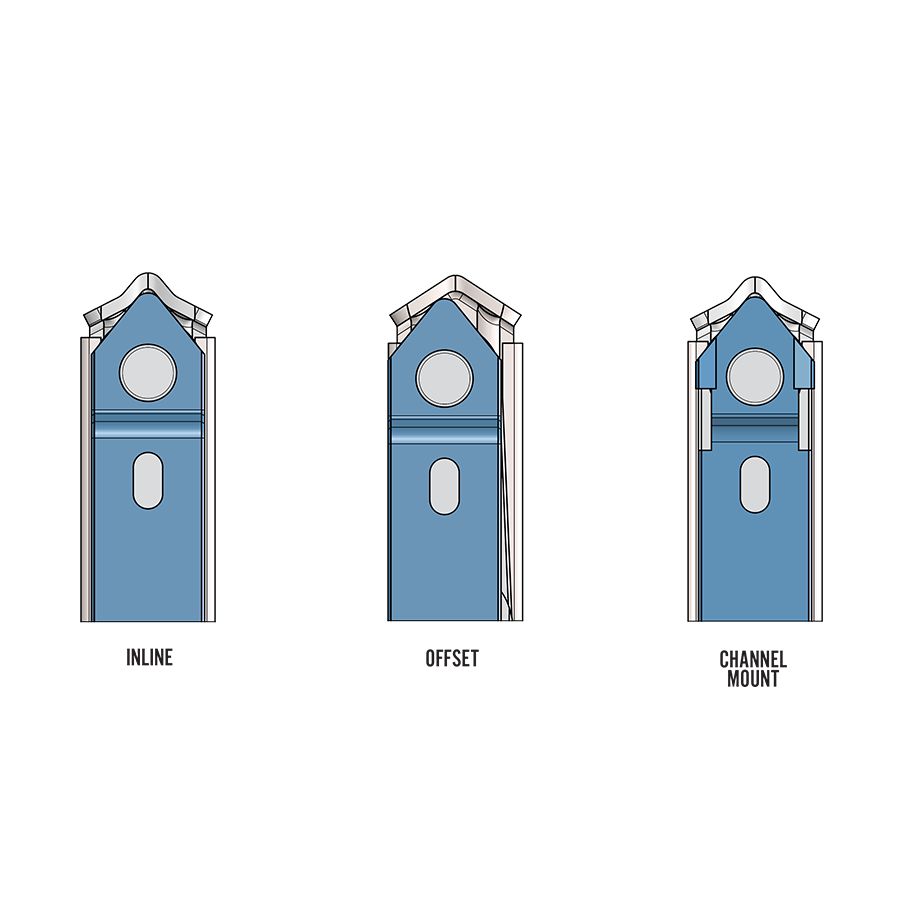

Mounting Types
WINDOW TYPE Casement MOUNTING TYPE Inline, Offset & Channel (Euro Groove Type 1 & 2) HINGE STACK HEIGHT 0.625", 16mm^ (Channel Mount: 0.453", 11.5mm^) SASH/VENT WEIGHT MAX 115 Lbs SASH/VENT HEIGHT MIN 11" SASH/VENT HEIGHT MAX 33" HINGE LENGTH 10", 12" ROTATION LOAD 36 Lbs ADJUSTABLE LIMIT STOP Removable (12" Only); Included for Series i ADA CAPABILITY Yes AW TESTING Yes NYC/DOH Achievable: Application Dependent CERTIFICATIONS AAMA 904.09 HINGE FRICTION OPTIONS Commercial Tension, Loose Rivet* MATERIAL TYPE Stainless Steel, Brass Shoe SCREW SIZE #10 (M5) POSITIVE GASKET COMPRESSION Yes BOX QUANTITY 50 pcs COUNTRY OF ORIGIN USA Channel Mount available for Euro Groove in Type 1 & Type 2.
Series i: Available for limited Sash/Vent Width: 17″-27″.
See Downloads for Specific Hinge Sizes, Capacity and Opening Degree.
^A Shim can be used to Increase Hinge Stack Height.
*Friction Adjustment Screw Not Available on Loose Rivet Tension.
Contact Caldwell for Application Dependent Questions.
