MAGNUM® Projection
Caldwell’s MAGNUM® Projection hinges: non-handed hinges for Inline, Offset and Channel Mount commercial grade windows.
Snubbers
Caldwell offers a wide variety of Snubbers with solutions for all applications: projection or casement, Euro groove or surface mount.
Product features
- Snubbers provide positive and negative pressure for multi-bar hinge windows
- Patented 20J0069 Spring Assist Snubber for structurally glazed surface mount applications
- 1549-3 Snubber Assembly (driver & receiver) surface mount applications
- 1678 Snubber Assembly (driver & receiver) for Euro-groove applications
- Various 616 Drivers & 617 Receivers are available for surface mount applications

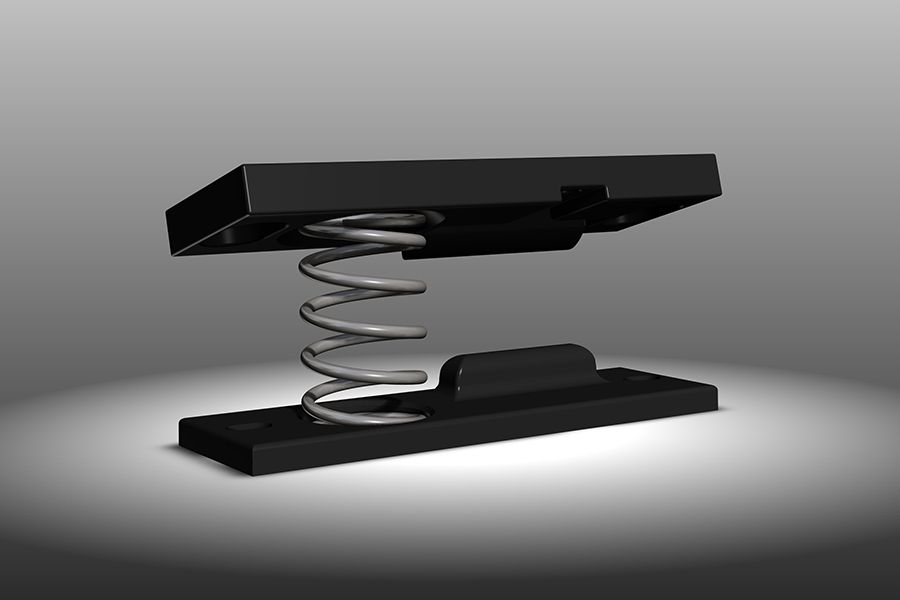

20J0069 Spring Assist Snubber

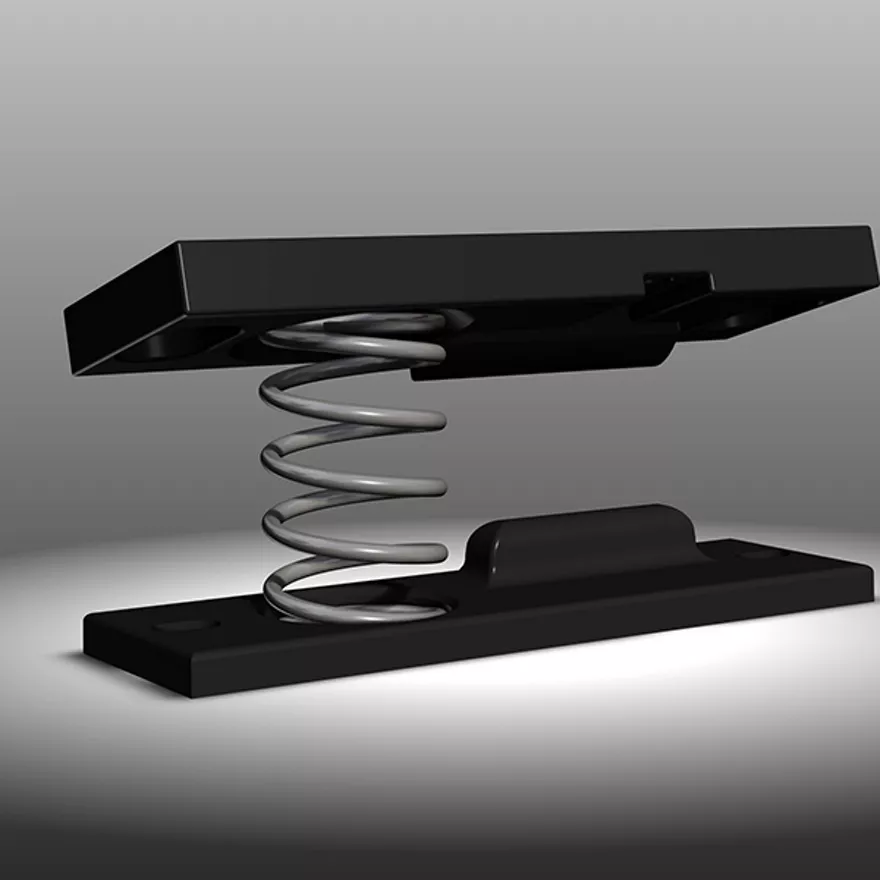

20J0069 Spring Assist Snubber

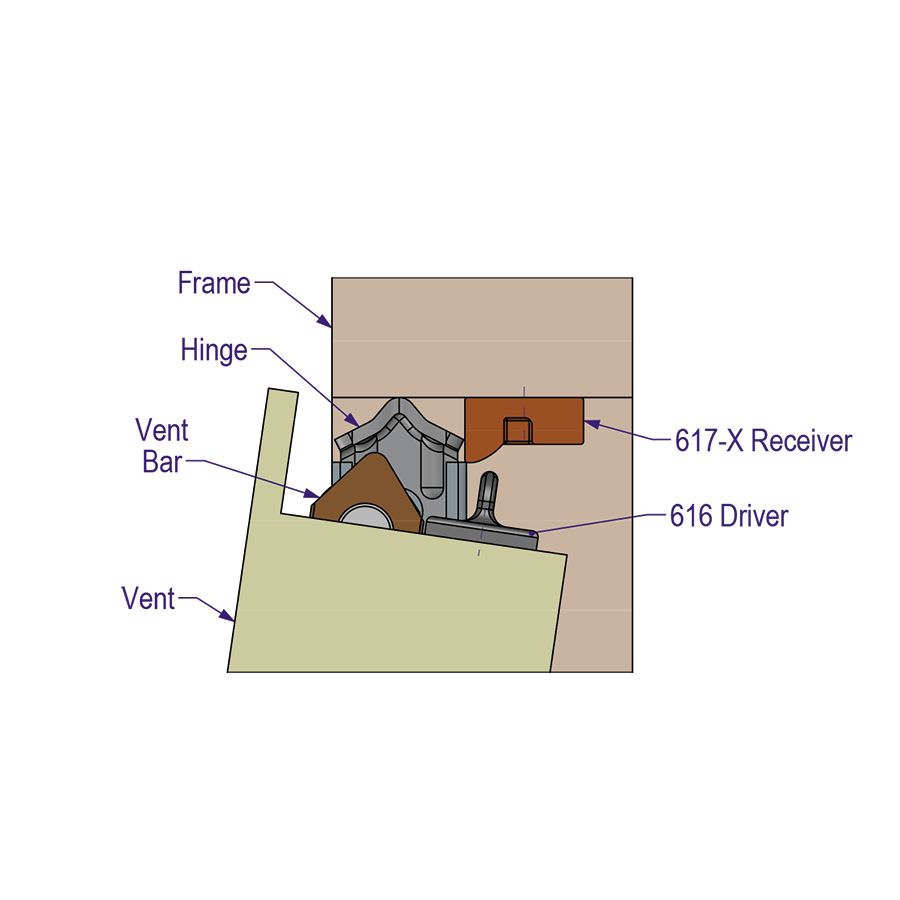

616 Drivers & 617 Receivers

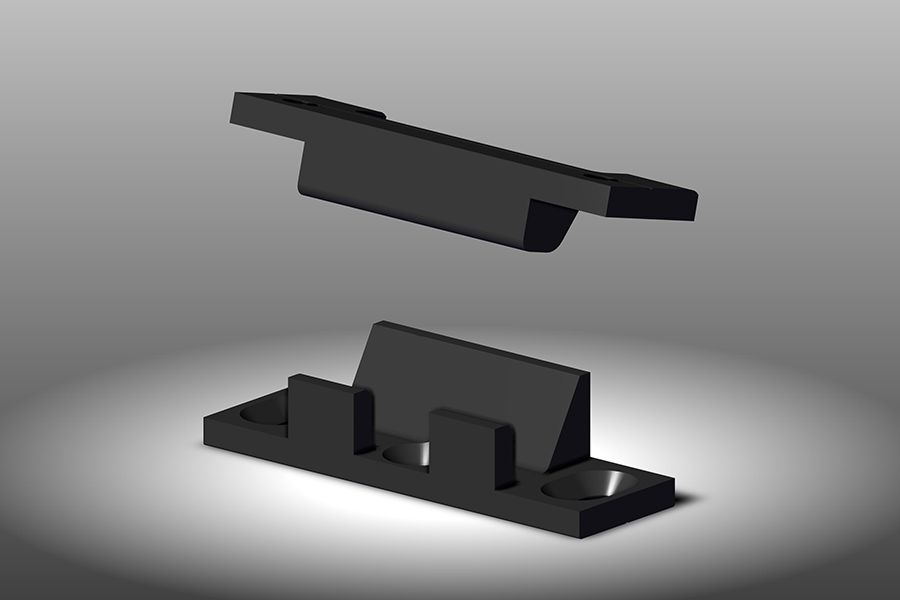

1549-3 Snubber Assembly (driver & receiver)

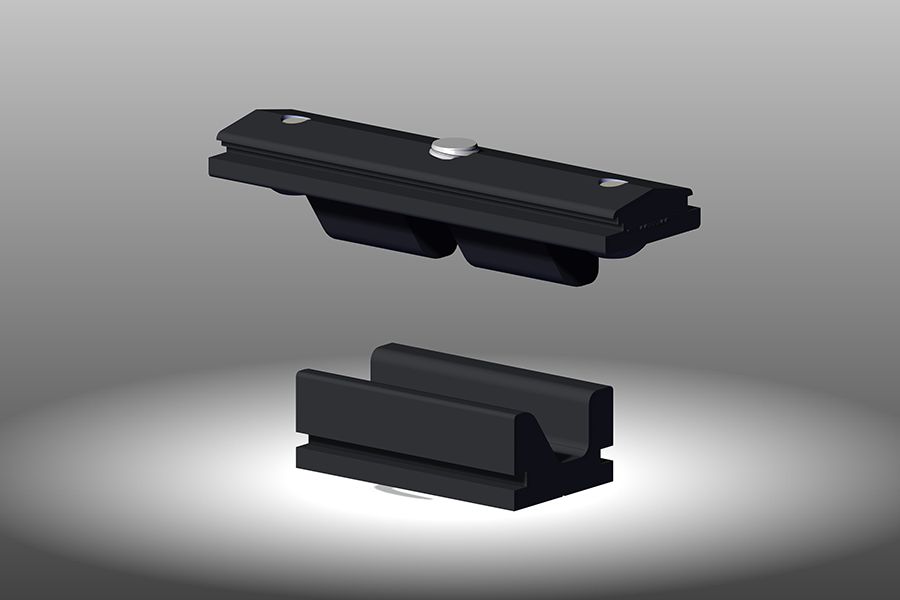

1678 Snubber Assembly (driver & receiver)
WINDOW TYPE Surface Mount or Euro Groove SNUBBER STACK HEIGHT See Outline Drawing for Sizes Shims are available to increase stack height.
Customer Design and Engineering Support Available.
Contact Caldwell for Application Dependent Questions.
Related products
MAGNUM® Casement

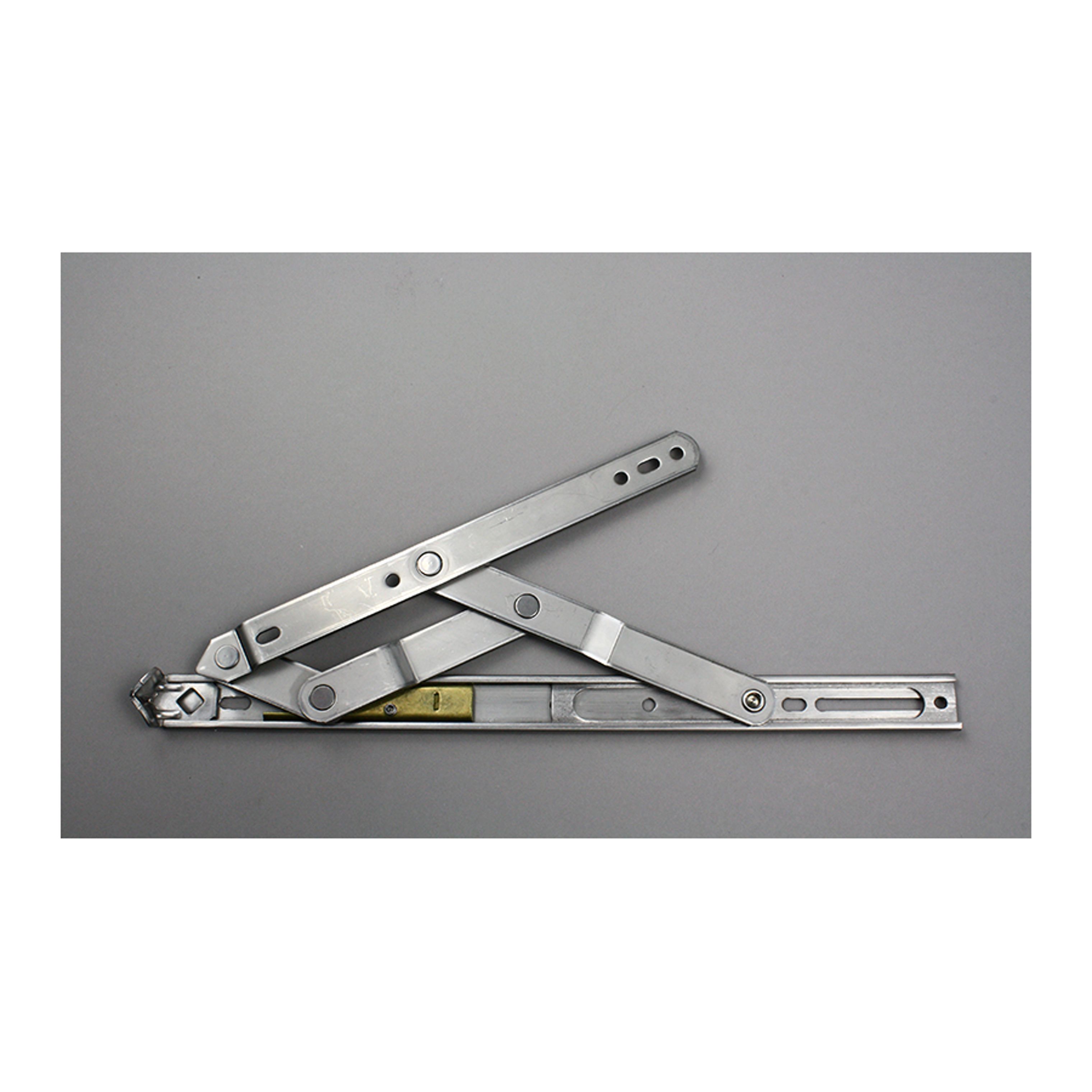

Caldwell’s MAGNUM® Casement hinges: non-handed hinges for Inline, Offset and Channel Mount commercial grade windows.MAGNUM® Monumental

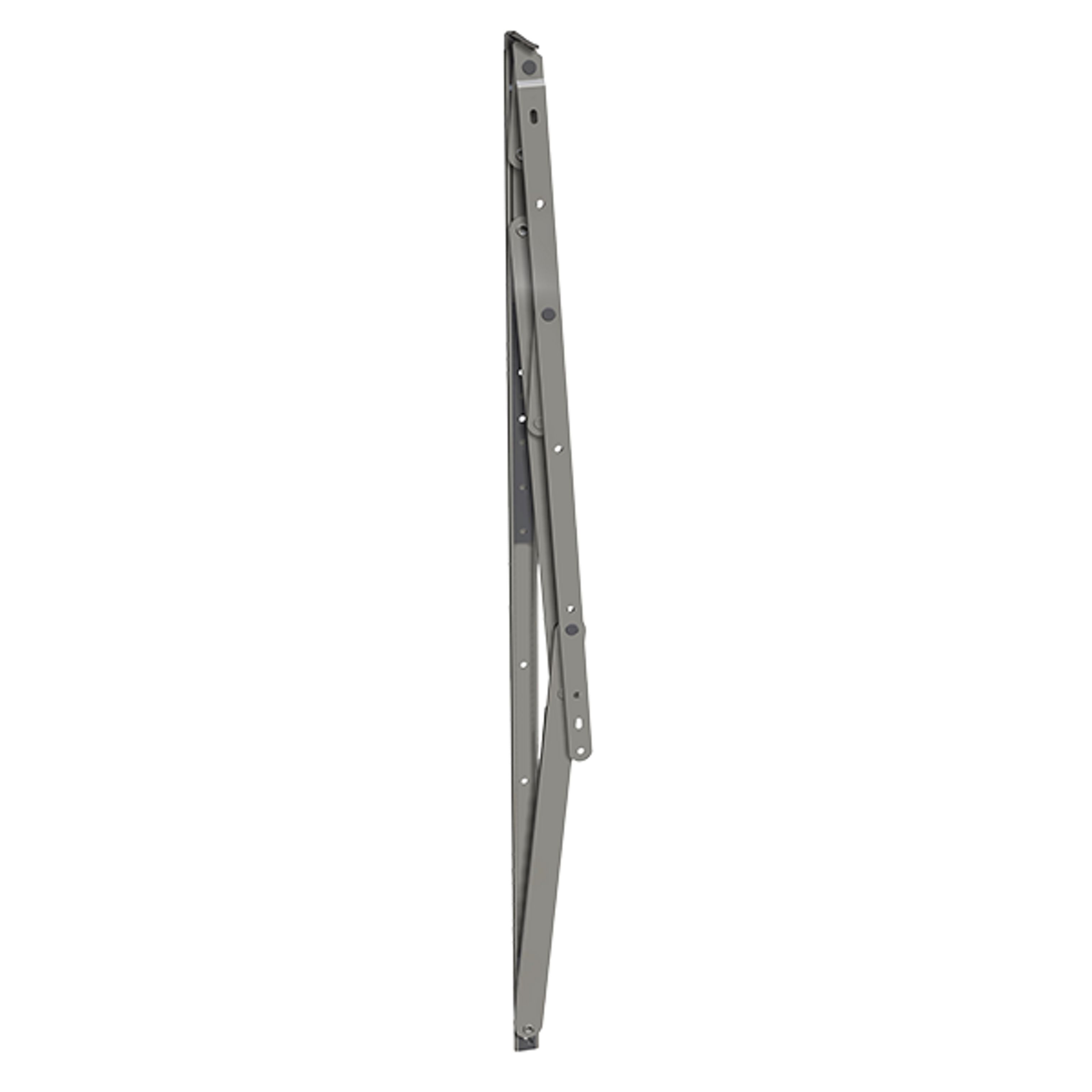

Caldwell’s MAGNUM® Monumental Projection hinges: a top hung solution for easy operation of monumentally tall projected vents, up to 450 lbs.MAGNUM® EZi Projection

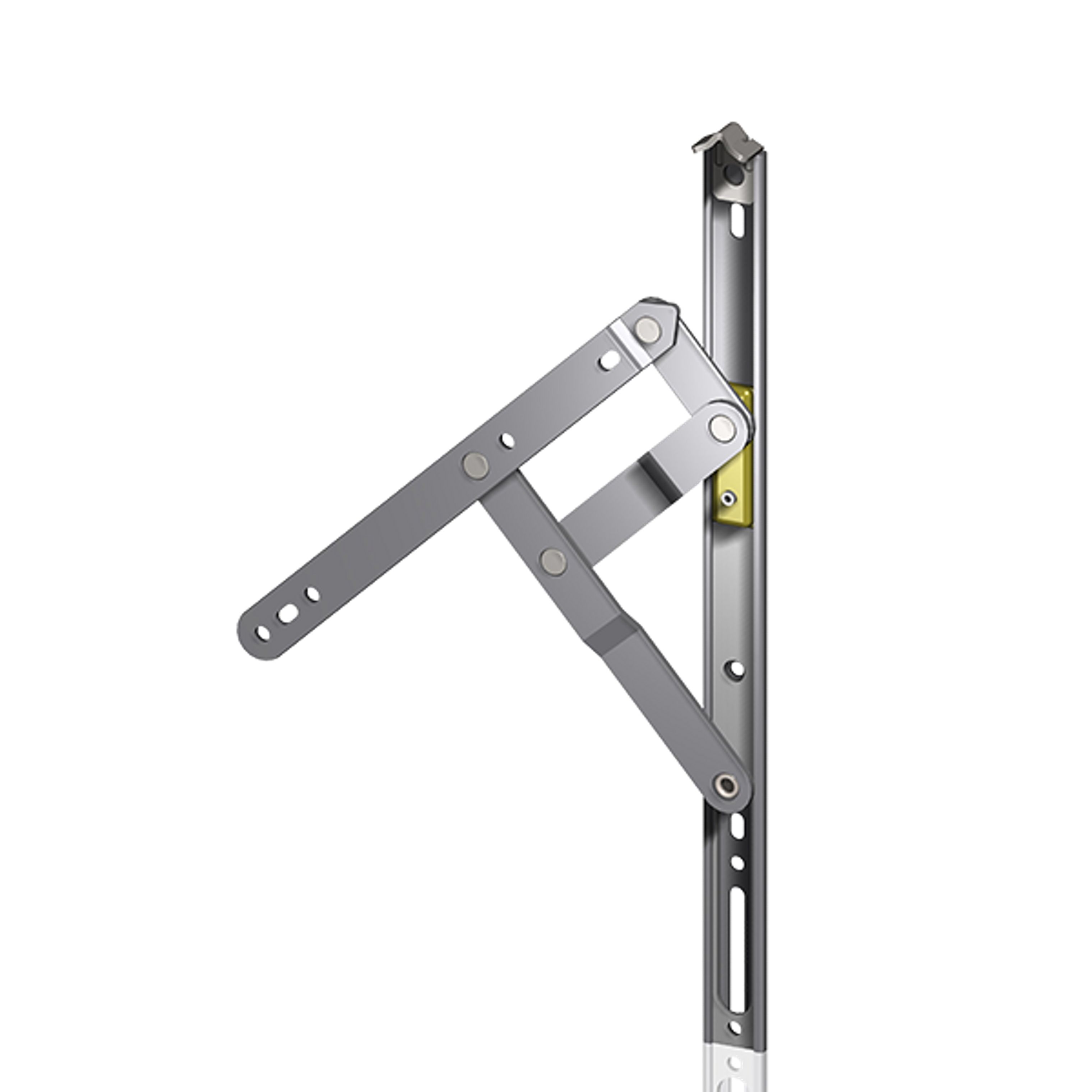

Caldwell’s MAGNUM® EZi Projection hinges: easy hinge installation.Caldwell’s MAGNUM® EZi Projection hinges: easy hinge installation No cutting limit stops & no fabrication, infinitely adjustable, limit device built into the hinge.MAGNUM® EZi Casement
