Limit Devices & Friction Adjusters
Caldwell offers a wide variety of Limit Devices & Friction Adjusters with solutions for all applications: projection or casement, Euro groove or surface mount, non-releasable, releasable or Patented keyed releasable, with in hinge options.
Product features

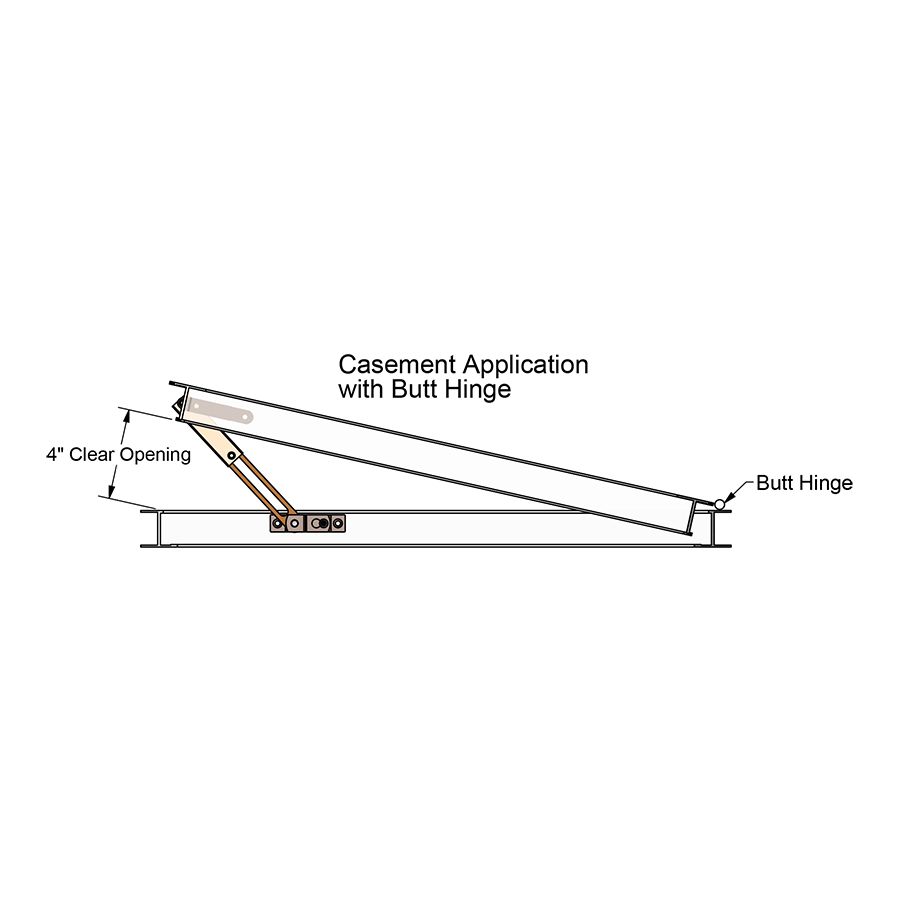

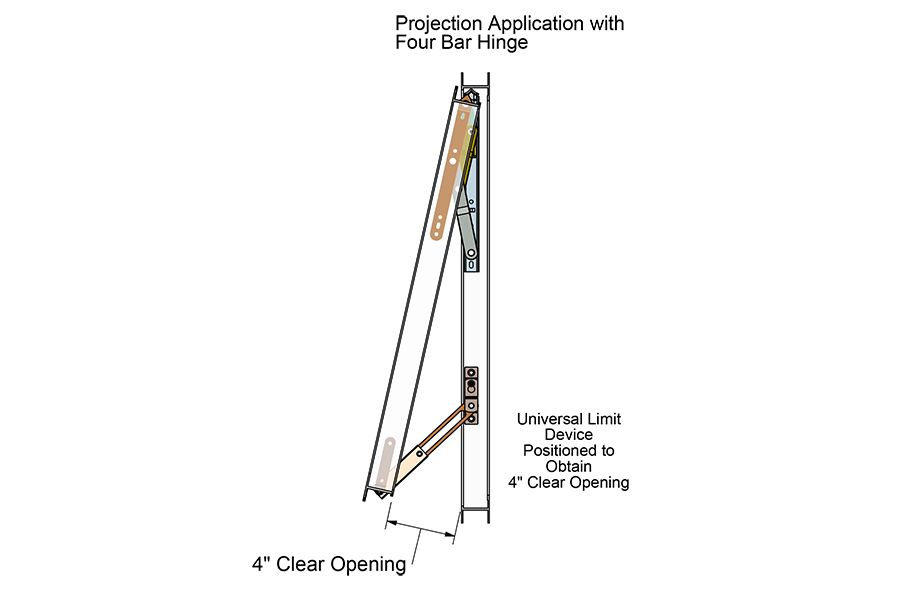

- Universal Limit Device Provides 4” Limiting With One Size Device And Standardized Mounting
- Patented Keyed Bracket For Easy Release Via Security Hex Key Allows Access For Cleaning Or Maintenance Of Vents
- Devices Provide Positive Limiting of the Vent Opening
- Multiple Position Adjustable Stop
- Provides Solutions to Meet Limited Window Opening Codes
- Provides Additional Friction for Vent Control
- Wide Variety of Arm and Track Sizes Available
- Optional Cost Effective In Hinge Limit Requires No Drilling In the Stainless Steel Track

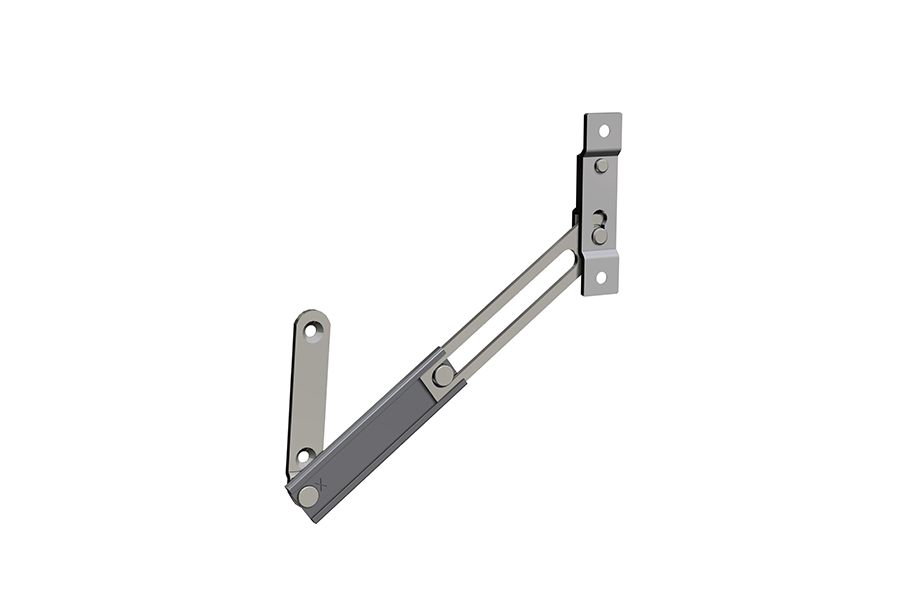

20J0001 Universal Limit Device
20J0001 Universal Limit Device
20J0001 Universal Limit Device
20J0023 Universal Limit Device Euro Groove

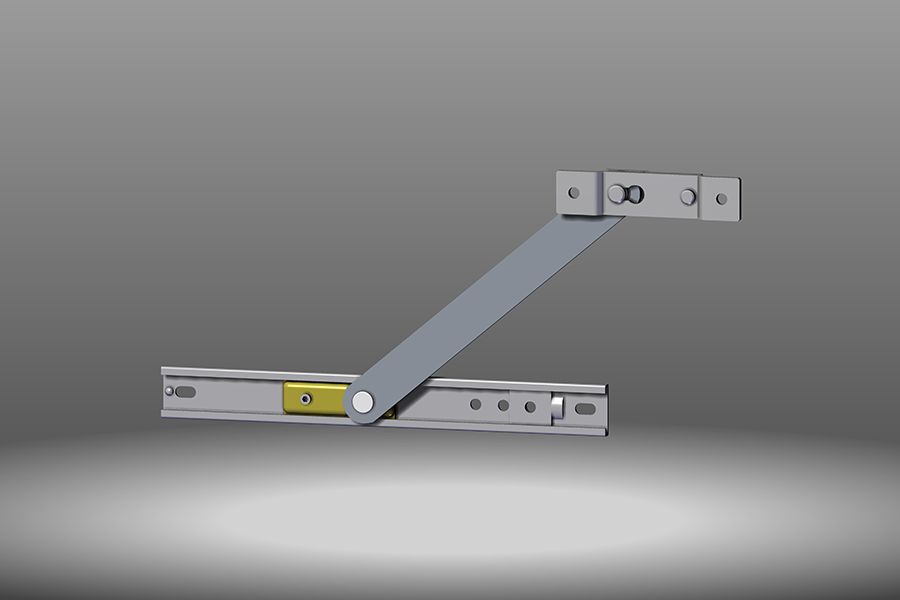

419 Keyed Limit Device

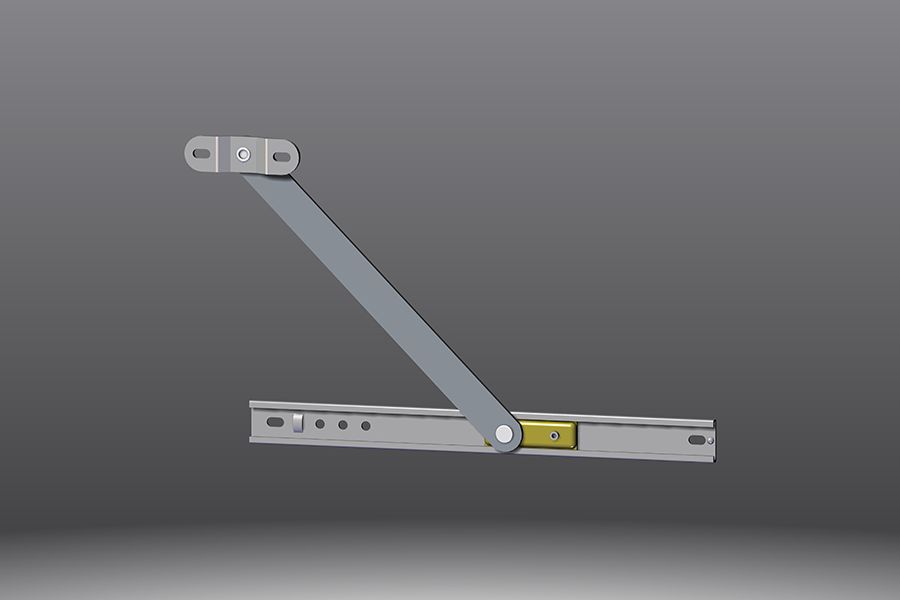

177 Friction Adjuster

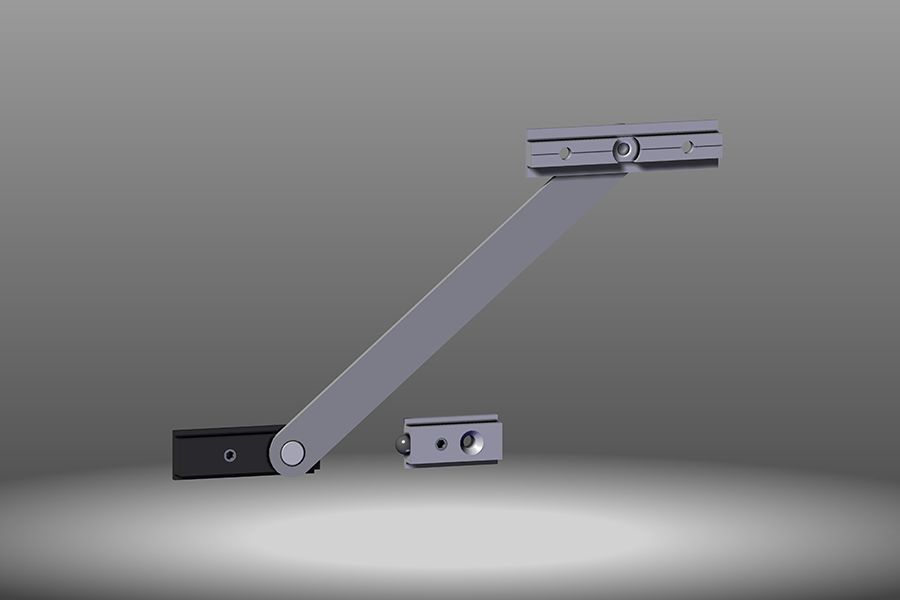

1292 Friction Adjuster

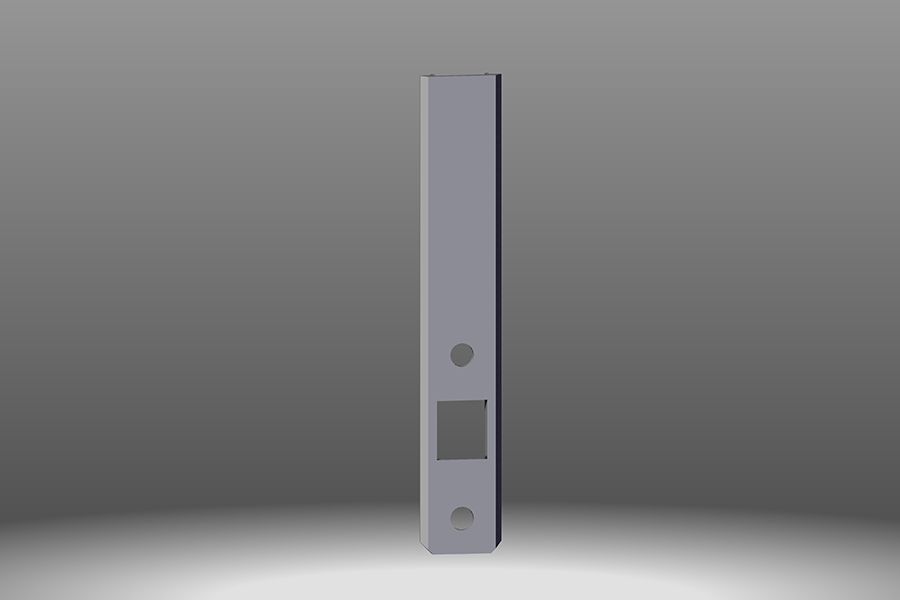

211 In Hinge Limit Device
20J0001 Universal Limit Device
WINDOW TYPE Surface Mount or Euro Groove LIMIT DEVICE SIZES See Outline Drawing for Sizes Shims are available to increase thickness.
Customer Design and Engineering Support Available.
Contact Caldwell for Application Dependent Questions.
