Custom Profile Adjustable Butt Hinge
Caldwell’s Custom Profile Adjustable Butt Hinges are fully assembled, profile specific and field adjustable for casement applications.

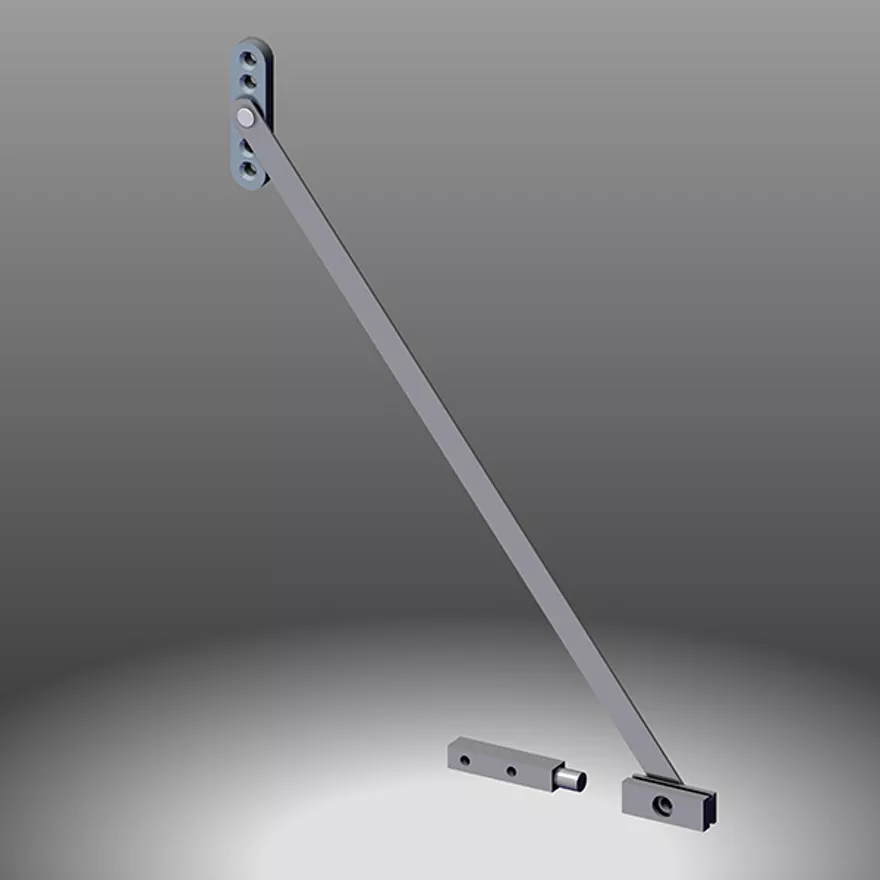

Concealed Door Stops
Concealed Door Stops for Terrace Door Applications
Product features
- Options suitable for Window & Doors of all types: terrance door, euro groove and surface mount options
- Options suitable for inswing & outswing windows
- Many arm length options available
- Many inside shoe groove dimensions available
- Friction, releasable, hold open, spring and no shoe options available

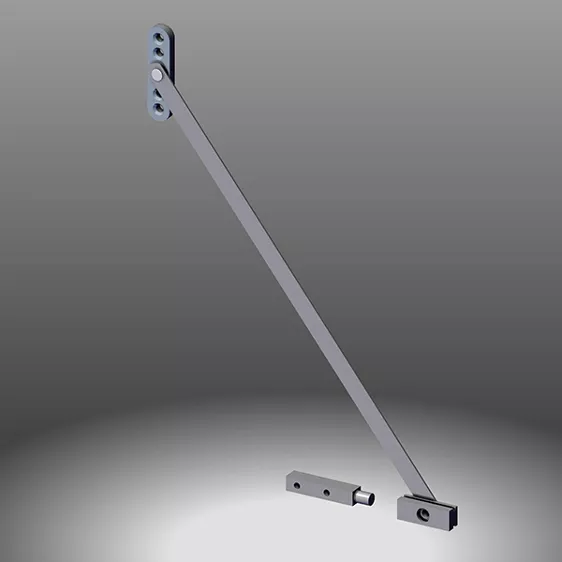

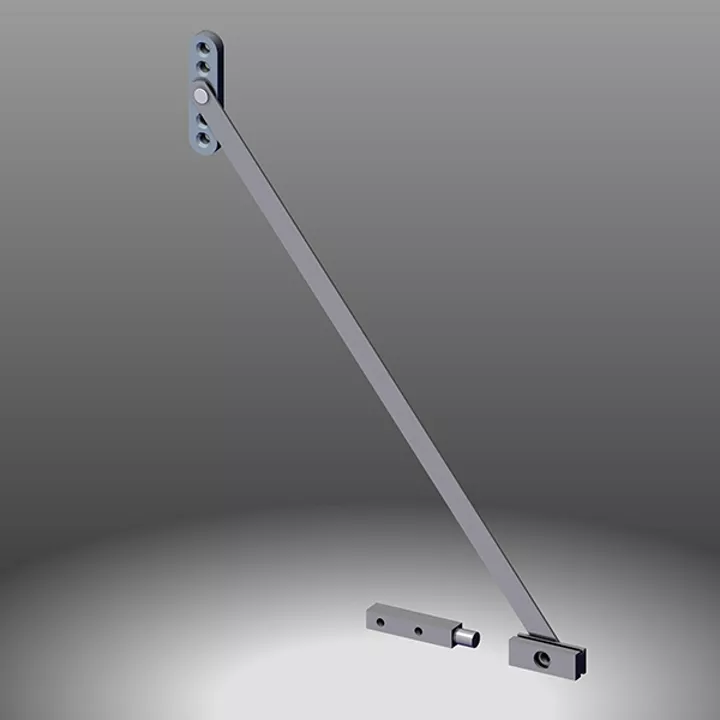

Generic Concealed Door Stops
Generic Concealed Door Stops

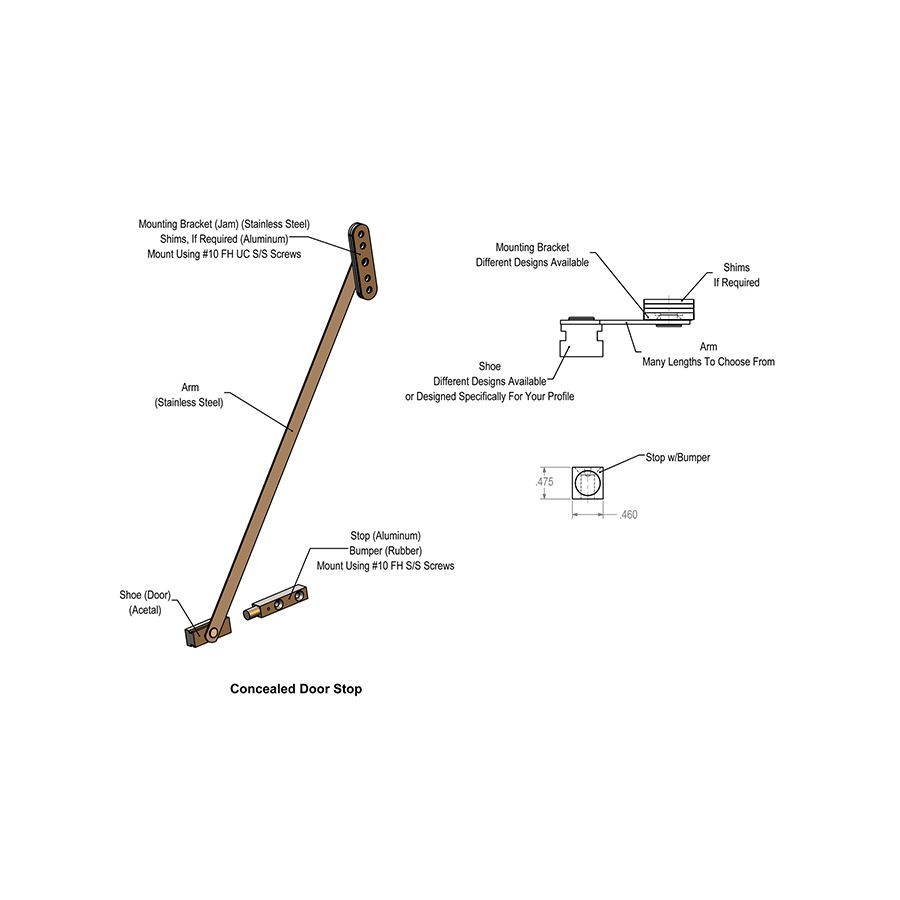

Generic Outline Drawing
WINDOW & DOOR TYPE Terrance Door, Euro Groove and Surface Mount Options WINDOW OPERATION Inswing and Outswing ARM LENGTH Many Options Available INSIDE SHOE GROOVE DIMENSION Many Options Available Contact Caldwell with your specifications for more information.
Part Number
Arm Length Inside Shoe
Groove DimensionDetails or Features 362 12″ 0.490″ Stop with Spring 405 10″, 11″, 15″ 0.444″ 504 5.38″, 7.75″, 11″ 0.570″ Euro Groove 521 10″, 15″ 0.490″ Stop with Spring 648 10″, 15″ 0.470″ 710 15″ 0.465″ With Friction 748 15″ 0.454″ 776 10″, 12″, 15″ 0.465″ With Friction 798 15″ 0.440″ 842 15″ 0.470″ 888 8″ 0.470″ 991 8.5″, 15″ 0.490″ 992 15″ 0.465″ With Friction 1037 15″ 0.440″ 1063 12″ 0.440″ 1069 10″ 0.440″ 1168 15″ 0.465″ Hold Open Feature 1173 15″ n/a Customer Provides Shoe 1206 11″, 13″, 15″ 0.470″ 1206F 10″ 0.470″ With Friction 1322 12″, 15″ 0.482″ With Friction 1338 15″ 0.450″ 1509 15″ 0.570″ Releasable With Friction
Related products
Custom Profile Butt Hinge

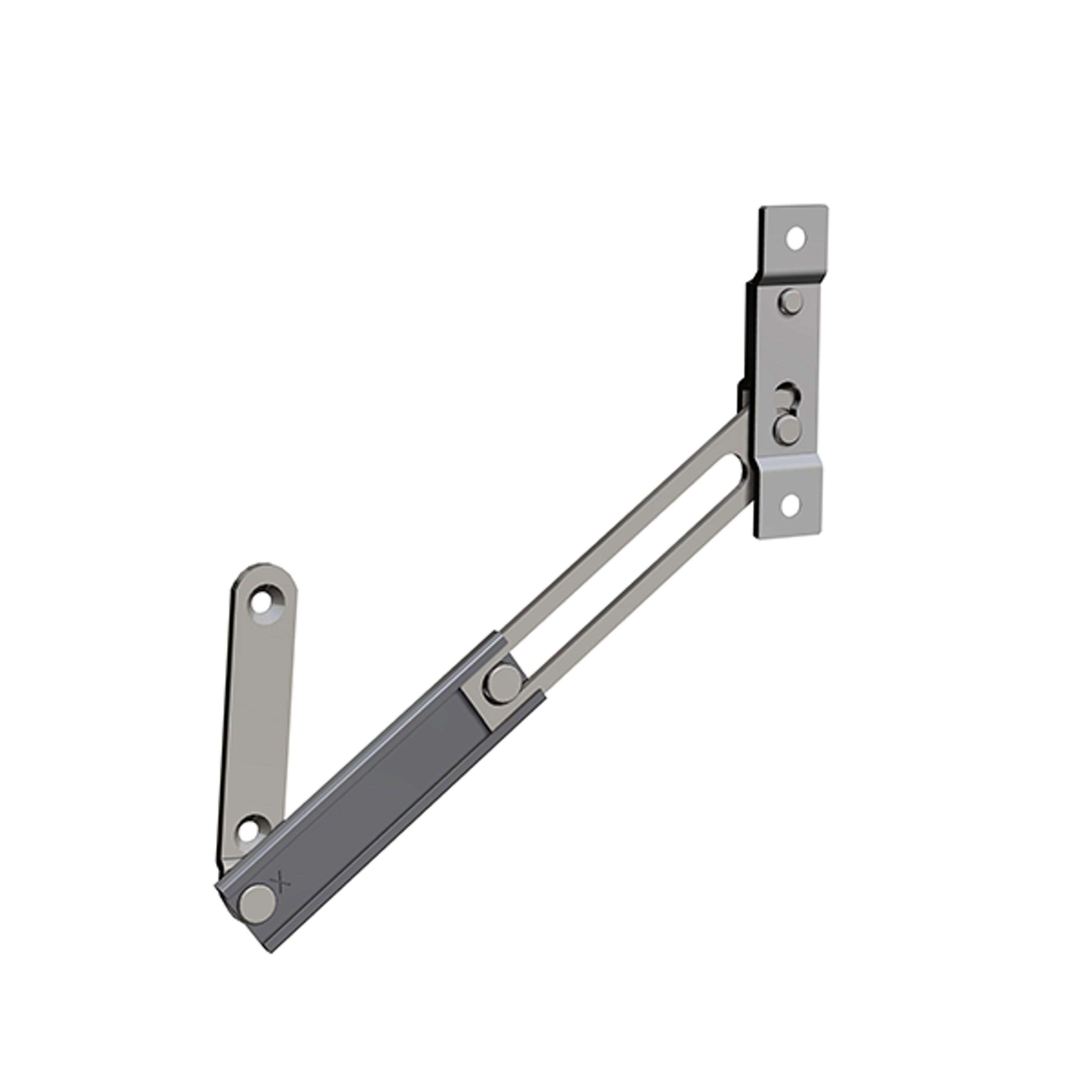

Caldwell’s Custom Profile Butt Hinges are fully assembled and profile specific for casement applications.Limit Devices & Friction Adjusters
Caldwell offers a wide variety of Limit Devices & Friction Adjusters with solutions for all applications: projection or casement, Euro groove or surface mount, non-releasable, releasable or Patented keyed releasable, with in hinge options.
